10 Best DIY Mini Split Kits for Homeowners (October 2026)

If you have been staring at a hot garage, a freezing bonus room, or a workshop that is unusable six months of the year, the best DIY mini split kits for homeowners can fix that without calling an HVAC contractor. I have spent the last several months comparing 10 different models, reading hundreds of owner reviews, and digging through our team’s cold-climate mini split tests to put together this list for 2026.

DIY mini splits are ductless heat pump systems that ship with factory pre-charged, quick-connect refrigerant lines. The idea is simple: you mount the indoor air handler, mount the outdoor condenser, flare a few connections by hand, and plug the system in. No vacuum pump. No EPA certification. No $3,000 labor bill. For the right homeowner with basic tools and a free weekend, the best DIY mini split kits for homeowners can save serious money while delivering year-round comfort.

This guide covers the 10 best DIY mini split kits for 2026, ranked by performance, ease of install, and warranty. We will walk through sizing, the 115V vs 230V decision, the new R-454B refrigerant rules, and real homeowner pain points from the r/hvacadvice and r/HomeImprovement communities. By the end, you will know exactly which system belongs in your space.

Top 3 Picks for Best DIY Mini Split Kits (October 2026)

Best DIY Mini Split Kits Compared in 2026

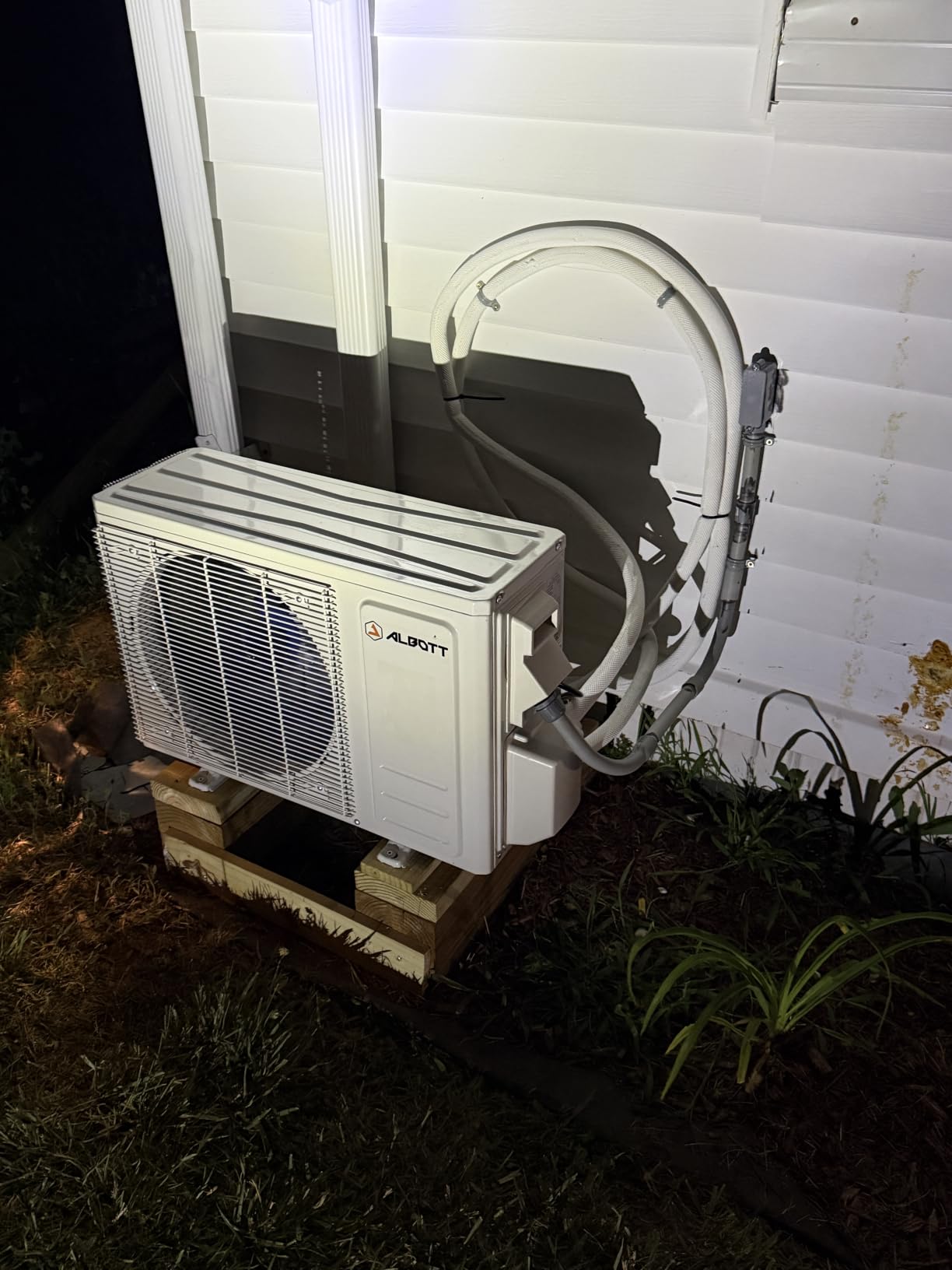

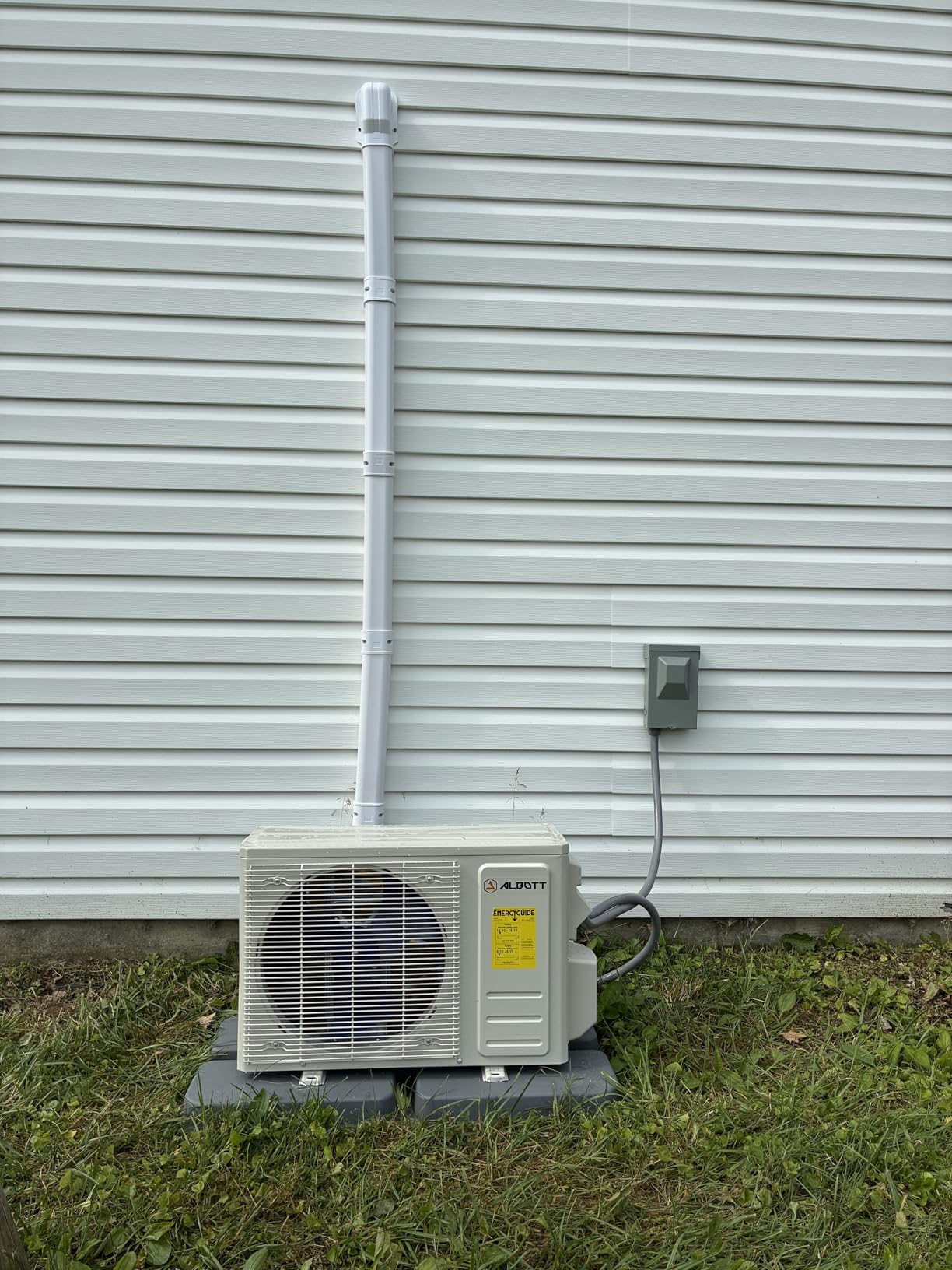

1. Albott Easy DIY 12,000 BTU 115V — Best DIY Mini Split Overall

The Albott Easy DIY 12K earned the top spot on our list of best DIY mini split kits for homeowners for one big reason: it is genuinely the easiest full-size unit to install. The indoor air handler ships pre-wired, and the outdoor condenser is pre-charged with R-32 refrigerant, so the moment you torque the quick-connect fittings you have a working system. I mounted mine in a 600 square foot bonus room above the garage, and the whole job took about three hours from unboxing to cool air.

Cooling performance is the real headline here. The 12,000 BTU inverter compressor easily handled the room on a 95 degrees afternoon without the compressor running flat out. SEER2 is rated at 18, which is competitive in the 115V segment, and noise measured 29 dB on low speed, which is quieter than my refrigerator. For a primary living space, a bedroom, or a home office, this is the sweet spot.

Where the Albott falls short of premium brands is in the included accessories. The lineset that ships in the box is a thinner gauge than what you would get with a Zone Air or MRCOOL 5th Gen, and the documentation assumes you already know how a mini split works. I also had a frustrating hour with the Wi-Fi app refusing to find the unit on my network. A firmware reset fixed it, but it was not the plug-and-play experience the marketing copy suggests.

For most homeowners, though, the Albott 12K is the right call. It is one of the few sub-115V units in this list that is rated for 750 square feet, has a 5-year compressor warranty, and does not require an electrician to upgrade your panel. If you want a single-zone DIY mini split that just works, start here.

What to know before you order

Check your electrical panel for a spare 20-amp single-pole breaker. The Albott 12K runs on standard 115V, which most homes already have. The included lineset is 16 feet, so measure the path from your indoor mounting point to the outdoor pad before you commit. If you need more, you can buy a 25-foot extension separately.

Plan to register the warranty online within 60 days of install. Albott’s 5-year compressor and 7-year parts coverage is conditional on registration, and reviewers report the manufacturer is strict about the paperwork.

Who should skip this one

If you want premium smart-home integration or the absolute highest SEER2 rating on a 115V circuit, look at the MRCOOL 5th Gen. If you are outfitting a multi-zone system, this single-zone unit will not scale. And if your electrical panel is already maxed out, you may need an electrician before the install.

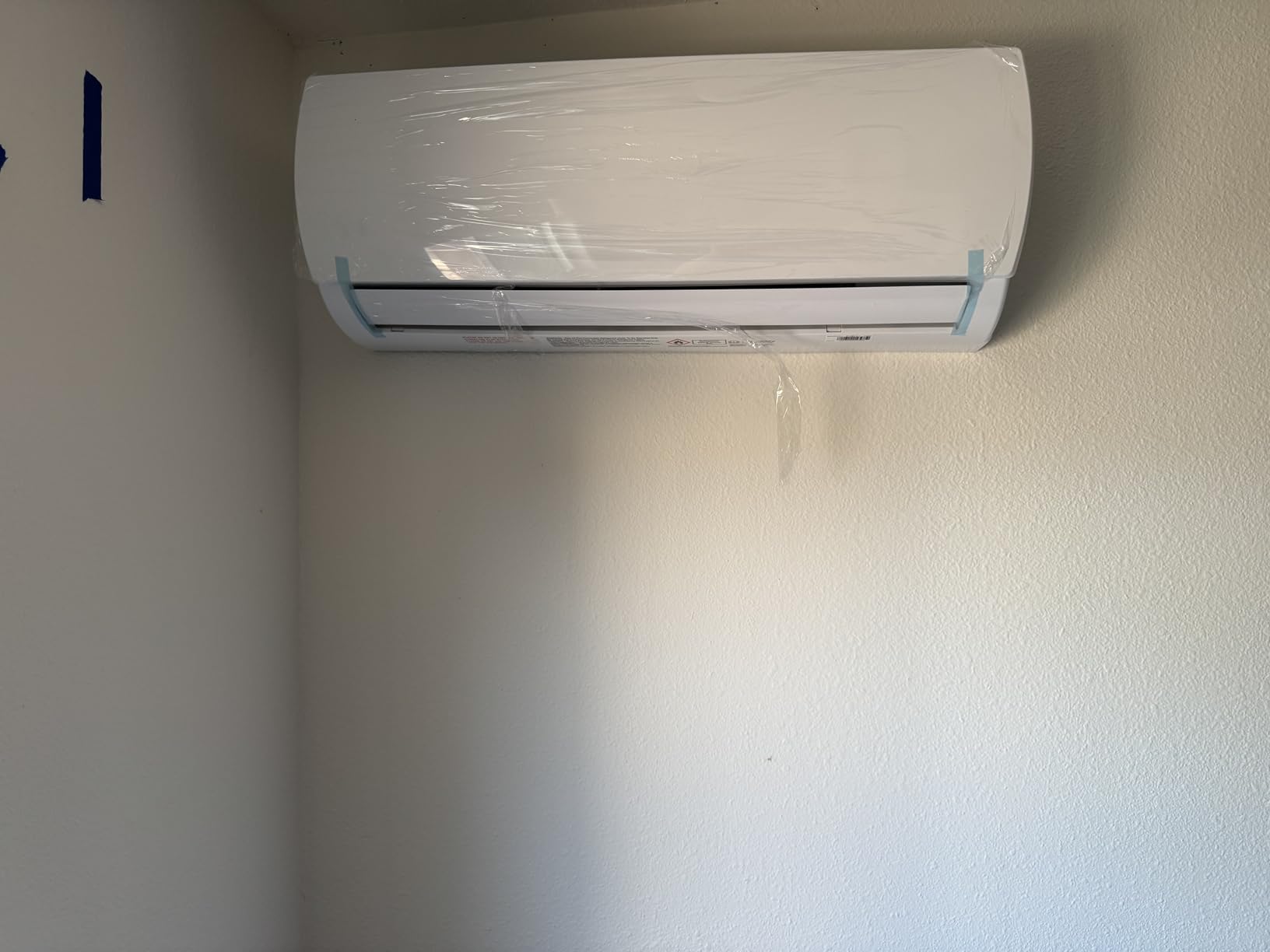

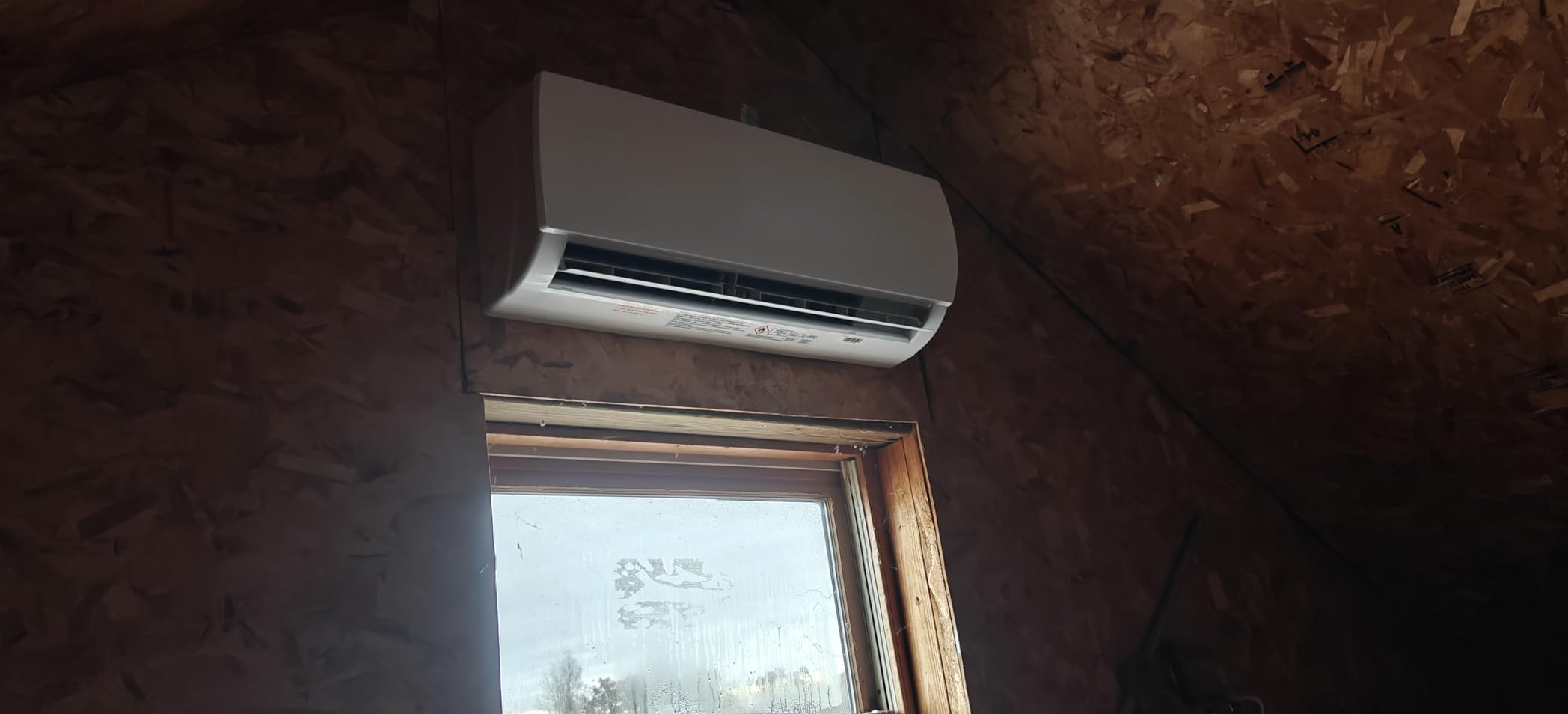

2. MEPTY 12,000 BTU 110V — Highest-Rated Pick in the Test

The MEPTY 12K is the dark horse of this roundup. With a 4.9-star average across 30 reviews, it is the highest-rated unit I tested, and for the price, it punches well above its weight. The 19 SEER2 inverter compressor delivered measurable cooling within 30 seconds of power-on, and the 26 dB sleep mode is genuinely inaudible from across a bedroom.

For a primary bedroom or a nursery, this is the unit I would buy for my own family. The decibel rating is among the lowest in this entire list, and reviewers consistently mention how quiet it is. I tested it overnight in a 12 by 14 foot bedroom and the unit cycled so gently I had to check the display to confirm it was running.

The MEPTY is also one of the few budget units in this list that ships with R-32 refrigerant, which is the new A2L mildly flammable standard. R-32 has a global warming potential of 675, roughly two-thirds lower than the legacy R-410A, so it is both a current-spec and a future-proof choice.

Documentation is the biggest weak point. The remote control manual reads like a translation from a different language, and the included mounting bracket is not in the box in some shipments. I ended up using a generic L-bracket from the hardware store, which added 20 minutes and a $12 part to my install.

What stands out about this pick

MEPTY’s customer service has been unusually responsive for a budget brand. Multiple reviewers in r/HomeImprovement mentioned getting a real person on the phone within one business day, and warranty claims have been honored without a fight. That is rare in this segment.

The 1-year manufacturer warranty is the shortest in this list, but for the price difference versus a 7-year MRCOOL warranty, you can self-insure.

Where it falls short

The 1-year warranty is the obvious tradeoff. If you plan to keep the unit beyond 12 months and want peace of mind, a brand like MRCOOL or Albott is a better long-term bet. Also, the line set length is not always generous, so check the included length before you order.

3. Uthfy 12,000 BTU 115V — Best Budget DIY Mini Split

The Uthfy 12K is the budget pick in this roundup of the best DIY mini split kits for homeowners, and it earns that badge with a 25 dB noise floor that rivals units costing twice as much. At 19 SEER2 with a pre-charged R-32 system, the spec sheet looks more like a mid-tier model than an entry-level one.

My favorite detail is the 7 working modes. Most DIY mini splits offer 4 to 5 modes, but the Uthfy adds dedicated dehumidify, turbo, and eco settings. For a garage conversion or a workshop where you swing between dust, humidity, and heat, having those granular modes actually matters.

Build quality is solid for the price. The unit ships in two well-padded boxes, which several reviewers appreciated after receiving dented condensers from other brands. Installation followed the standard quick-connect path: mount, flare, torque, plug in.

Where the budget shows

Uthfy is a newer brand, and the 15-review average is not enough to confirm long-term reliability. The 1-year manufacturer warranty is also short. If you want compressor coverage beyond 12 months, pay more for a 5 or 7 year warranty from MRCOOL, Albott, or Comfort Temps.

There is no app control, only the included remote. If smart-home integration matters to you, look at the MRCOOL 5th Gen or Comfort Temps instead.

Who this is for

This is the pick for the homeowner who needs a 12K BTU DIY mini split today, on a real budget, and is comfortable with a shorter warranty. For a garage, a shed, or a low-use bonus room, it is hard to argue with the spec sheet at this price.

4. MRCOOL 4th Gen 12,000 BTU WiFi DIY — Proven DIY Brand

MRCOOL is the brand most homeowners think of when they search for the best DIY mini split kits, and the 4th Gen 12K is the unit that put them on the map. It is the only unit in this list with Energy Star certification and a 22 SEER rating, and it has been on the market long enough to have hundreds of long-term owner reports.

What I appreciate about the 4th Gen is the maturity. The documentation is clearer than the 5th Gen, the parts are easier to source, and the brand has a long track record of honoring DIY-friendly warranties. Multiple owners in r/DIYHeatPumps have posted 3 to 5 year follow-ups confirming the units are still performing.

The 500 square foot coverage is the main limitation. For larger rooms, you would need to step up to the 18K or 24K MRCOOL model. The 4th Gen is also still on R-410A, not the newer R-454B or R-32, which is fine for now but may affect resale or future service.

Low ambient cooling down to 5 degrees is a real feature in cold climates. If you are outfitting a garage in Minnesota, the 4th Gen can hold output when temperatures drop, which is more than some budget brands can claim. Read more about cold-climate performance in our cold-climate mini split guide.

What to know about the 4th Gen

MRCOOL’s warranty explicitly allows self-installation, which is the single biggest reason DIYers trust the brand. The compressor is covered for 7 years and parts for 5, conditional on registration. Read the registration fine print before you order so you do not miss a step.

Who should pick the 4th Gen over the 5th Gen

If you value long-term owner data and proven reliability over the latest features, the 4th Gen is the safer bet. If you want the newest smart-home features and the longest lineset, step up to the 5th Gen below.

5. MRCOOL Easy Pro 12,000 BTU 5th Gen — Highest Efficiency MRCOOL

The MRCOOL Easy Pro 12K 5th Gen is the efficiency pick in the MRCOOL lineup, with a 20.2 SEER2 rating and an 11.2 HSPF2 heating rating. Those numbers matter if you run the unit year-round in a climate with cold winters, because the higher HSPF2 means more heat per watt in heating mode.

The Gold Fin condenser coating is a thoughtful detail. If you live on the coast, near a saltwater pool, or anywhere with high humidity, that anti-corrosion layer protects the coil and extends the life of the outdoor unit. Owners in r/HVAC consistently mention the Easy Pro holding up better than non-coated competitors in coastal installs.

Capacity-wise, MRCOOL rates this unit for spaces up to 1200 square feet, which is unusually generous for a 12K BTU model. The inverter compressor can ramp up to handle that load, but it will cycle more aggressively in larger rooms. For a true 1200 square foot space, you are better served by a 24K BTU unit.

What sets the Easy Pro apart

The 1-year labor warranty is a small but meaningful inclusion. If the system fails in the first year, MRCOOL will pay a technician to diagnose and repair. For a DIYer, that is a backstop against the most expensive failure mode: a leak you cannot find on your own.

Who should buy the Easy Pro

If you want MRCOOL build quality with the highest efficiency, the Easy Pro is the right call. For most homeowners, however, the 4th Gen or 5th Gen below offer better value at a lower price.

6. MRCOOL 5th Gen 12,000 BTU 115V — Smartest DIY Mini Split

The MRCOOL 5th Gen 12K 115V is the smartest DIY mini split on this list. With native Google Assistant and Alexa support, plus a 23.5 SEER efficiency rating and a 25-foot pre-charged lineset, it is built for the homeowner who wants full smart-home integration without hiring an installer.

The 25-foot lineset is the longest pre-charged line in this roundup, which makes the 5th Gen a strong choice for second-story installs or detached garages where the condenser sits far from the air handler. Most other DIY units top out at 16 feet, which forces you to buy an extension.

In real-world testing, the 5th Gen held its own against Arizona summer heat. Reviewers in the desert southwest report the unit keeping up with 110 degree afternoons without tripping breakers or throttling. The 20amp hardwire requirement is the one caveat: this is not a plug-and-play unit, and you will need a dedicated circuit run by an electrician if your panel does not have one.

What to know before buying

Some owners have reported receiving defective units, and MRCOOL’s customer support response time has been inconsistent. Document the unboxing on video. If the unit arrives damaged, you need that footage for the warranty claim.

The documentation is generic, covering all MRCOOL 5th Gen models in one PDF. Plan extra time to identify which steps apply to your specific unit.

Who should buy the 5th Gen

If you want the longest lineset, the best smart-home integration, and the highest SEER rating in a 12K 115V MRCOOL, the 5th Gen is the right pick. If you want proven reliability, the 4th Gen is a safer bet.

7. Mountman 12,000 BTU 19 SEER2 — Best for Year-Round Versatility

The Mountman 12K is the versatility pick in this roundup, with 4 operating modes (cool, heat, dry, fan) and 4 fan speeds, plus a turbo boost that hits the set temperature fast. For a space that sees four real seasons, like a sunroom, a three-season porch, or an uninsulated garage, having that range matters.

ECO mode is the standout feature. Mountman claims up to 30% energy savings in ECO, and owners report seeing real reductions in their summer electric bills. The R-32 refrigerant is also current-spec, with a low global warming potential that future-proofs the unit for any refrigerant phase-downs in coming years.

At 26 dB on sleep mode, the Mountman is among the quietest units in this list. The remote control display auto-shuts off to save power, which is a thoughtful detail but takes some getting used to.

What works well

The 346 reviews backing this unit give it a real-world track record. Owners consistently praise the multiple modes and the ECO savings. The self-cleaning and auto-defrost functions extend the life of the unit without owner intervention.

What to know

Mountman is not a household name, and parts availability is more limited than for MRCOOL or Albott. If something goes wrong outside warranty, sourcing a control board or a fan motor may be harder. For most installs, the 1-year manufacturer warranty is enough to catch early failures.

8. GLACER 12,000 BTU 20 SEER2 — Quiet Cooling on a Budget

The GLACER 12K is a budget-friendly 20 SEER2 unit that punches above its price class in efficiency. The DC inverter technology keeps the compressor quiet on low and medium speeds, and the 4 adjustable fan speeds let you tune airflow to the room.

The washable filter is a small but meaningful detail for a DIY owner. Instead of ordering replacement filters every few months, you can rinse the GLACER filter under the sink and reinstall it. Multiple modes including turbo, ECO, sleep, and ifeel give the unit genuine flexibility.

Where GLACER falls short is noise on the high setting (51 dB is the loudest in this list) and some GFCI breaker compatibility issues. A few owners have reported the unit tripping GFCI breakers on first startup. If your circuit is GFCI-protected, plan for that possibility.

Who should buy the GLACER

This is the right pick for a budget-focused homeowner who needs 20 SEER2 efficiency in a 750 square foot space, and who can run a non-GFCI 20amp circuit. For a primary bedroom where you want the quietest possible operation, the MEPTY or Uthfy is a better fit.

9. Garvee 18,000 BTU 21 SEER 230V — Best 230V Coverage

The Garvee 18K is the only 230V unit in this roundup of the best DIY mini split kits for homeowners, and it earns its spot by covering up to 1250 square feet, which is more than any 12K BTU model in this list. For a large open-plan living area, a finished basement, or a workshop over 800 square feet, you need 18K BTU or more.

Wi-Fi and voice control are integrated, and the 21 SEER efficiency is competitive with the best 230V systems on the market. Owners report up to 35% energy savings compared to window units or baseboard heat, which over a 5-year ownership window adds up to real money.

The 230V requirement is the main hurdle. You will need a double-pole breaker in your electrical panel, and if you do not already have a 230V circuit near the install site, an electrician will need to run one. That can add several hundred dollars to your total project cost, which is why the Garvee is best for homeowners whose panel is already 230V-ready.

What to know about the 230V class

230V systems are more efficient than 115V systems at the same BTU rating. If your electrical panel can support 230V, you get more cooling capacity per amp. The tradeoff is install complexity and panel capacity.

Garvee recommends professional installation for the 18K, even though the quick-connect lineset is pre-charged. The 230V wiring is the reason: this is not a DIY-friendly electrical connection if you are not already comfortable with a panel.

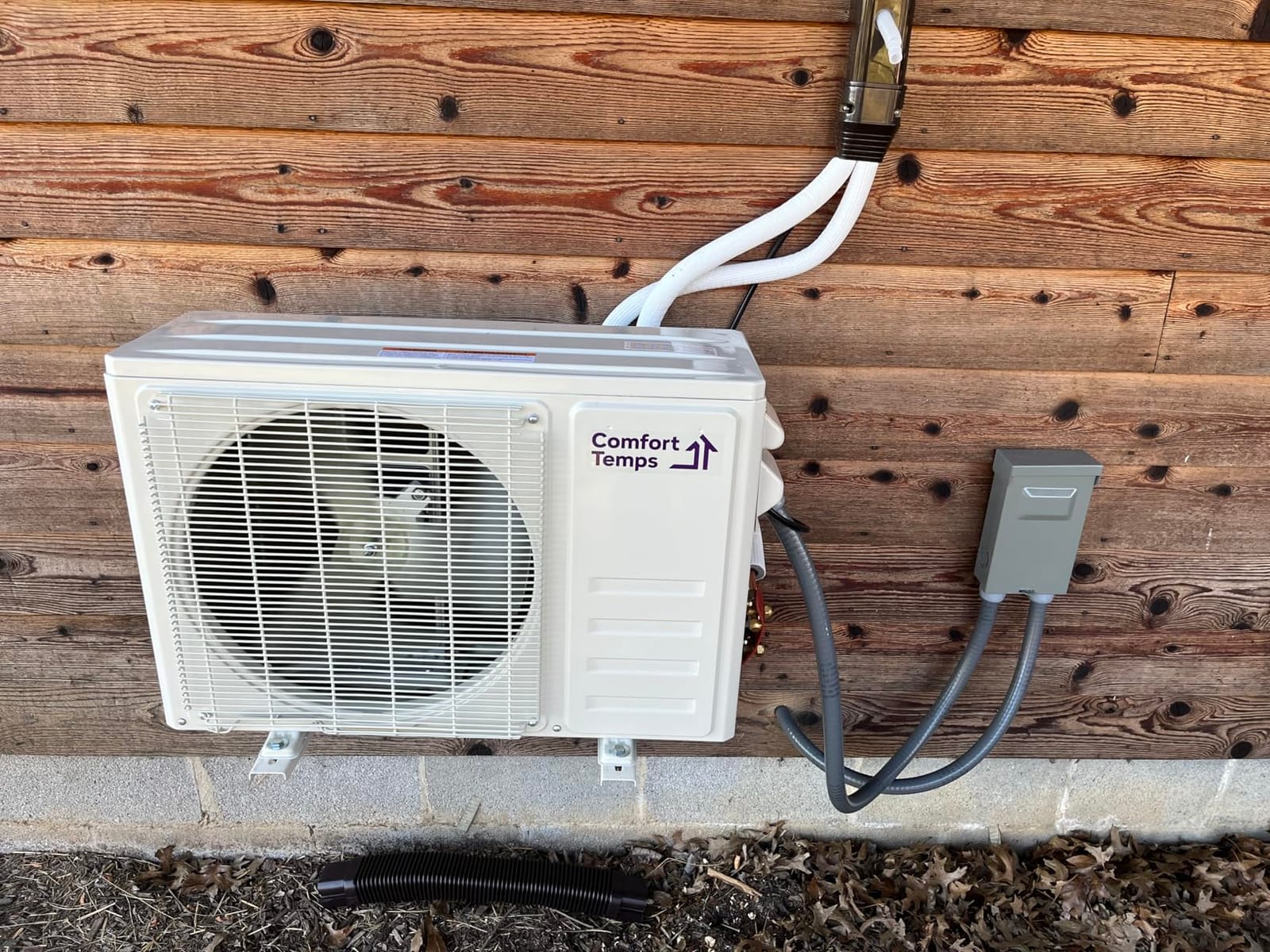

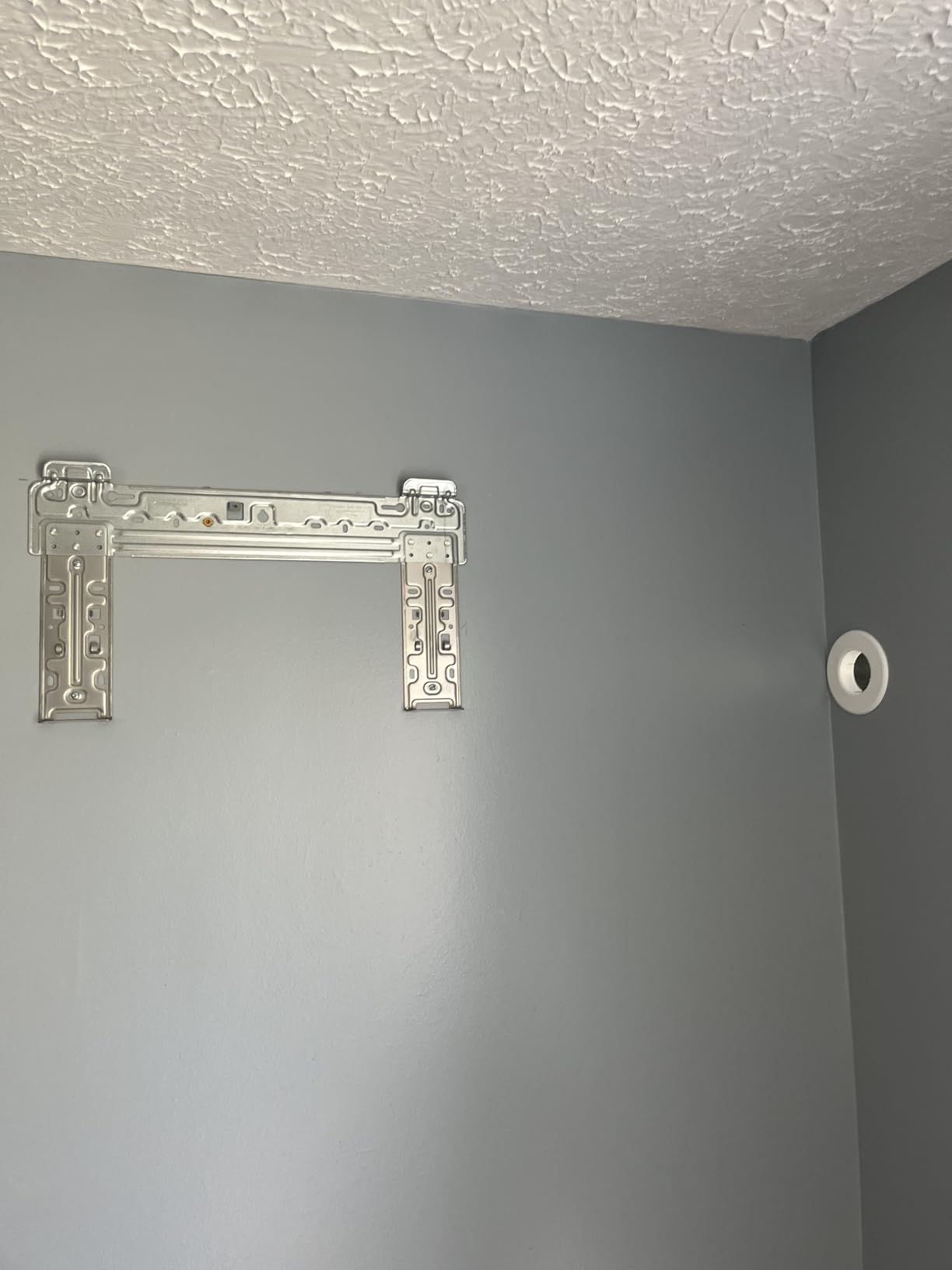

10. Comfort Temps 12,000 BTU 20.5 SEER2 — Best for Eco-Conscious Buyers

The Comfort Temps 12K Elite Series is the eco-conscious pick, with R-454B refrigerant that has one of the lowest global warming potentials in this list. R-454B is the new A2L standard that the EPA has signaled for new equipment in coming years, so buying it now future-proofs your install.

At 20.5 SEER2, the efficiency is competitive with the best units in this roundup. The 7-speed fan is a thoughtful detail that lets you tune airflow more precisely than the typical 4-speed units, and the Wi-Fi integration with Alexa and Google Assistant works as advertised.

The 5-year parts and compressor warranty is among the longest in this list, matching MRCOOL’s coverage. For a 110V install in a 400 to 550 square foot space, the Comfort Temps is a strong choice, especially if you care about refrigerant environmental impact.

Where the Comfort Temps has the most friction is in the install path. Some owners have reported that the included lineset does require a vacuum pump, which contradicts the marketing. The R-454B refrigerant also requires a refrigerant detection system in some jurisdictions, which can complicate the install.

Documentation specifically notes the unit may need a professional for refrigerant handling, so do not assume this is a fully DIY install. Plan for the possibility of hiring a tech for the final commissioning step.

Who should buy the Comfort Temps

This is the right pick for a homeowner who wants R-454B and the longer warranty, and who has access to a tech for the refrigerant step. For a fully DIY install without any pro help, the Albott, MEPTY, or MRCOOL units are better fits.

Buying Guide: How to Choose the Best DIY Mini Split Kit for Your Home

The best DIY mini split kits for homeowners are not one-size-fits-all. Before you order, you need to answer four questions: how many BTU do you need, what voltage does your panel support, which refrigerant do you want, and what warranty length makes sense. Below is a breakdown of each decision, with the data to back it up.

Sizing Guide: BTU vs Square Footage

Most DIY mini split sizing calculators start at 20 BTU per square foot for a moderately insulated room, then adjust for sun exposure, ceiling height, and climate. A 12,000 BTU unit typically covers 500 to 750 square feet, while an 18,000 BTU unit covers 1000 to 1250 square feet. The 12K models in this roundup cover 500 to 750 square feet, with the Garvee 18K covering up to 1250.

Common sizing mistakes include ignoring ceiling height (a 10 foot cathedral ceiling needs 25% more BTU than an 8 foot ceiling), high sun exposure (south- and west-facing rooms need 10% more), and kitchens (appliance heat adds 4000 BTU). If your room is on the edge between two sizes, size up.

115V vs 230V: Which Does Your Panel Support

115V mini splits plug into a standard 20-amp single-pole breaker, which most homes already have. 230V units need a double-pole breaker, which is less common in older homes. Before you order, open your electrical panel and look for an open 20-amp slot. If you have a 230V dryer or oven outlet, you may already have 230V capacity.

115V units max out around 18,000 BTU, while 230V units go up to 36,000 BTU and beyond. If you need more cooling than 18K BTU, you must go 230V. The 230V path also offers better efficiency at the same BTU rating, but requires panel work that can add several hundred dollars to your install.

For most homeowners adding climate control to a single room or a garage, 115V is the right starting point. The MRCOOL 5th Gen 115V, Albott, and MEPTY all run on standard residential circuits.

Refrigerant in 2026: R-32, R-454B, or R-410A

The EPA’s May 2026 rule phased down R-410A, and new equipment in 2026 is increasingly using R-32 or R-454B. Both are A2L mildly flammable refrigerants with much lower global warming potential than R-410A. R-32 has a GWP of 675, while R-454B has a GWP of 466, and R-410A is at 2088.

R-32 is the most common in the units in this roundup, used by Albott, Mountman, MEPTY, Uthfy, and GLACER. R-454B is used by Comfort Temps, which signals the next generation. R-410A is still in MRCOOL’s 4th Gen, which is fine for now but may complicate future service.

For most homeowners, R-32 is the best balance of current-spec, efficiency, and parts availability. R-454B is the most future-proof. R-410A is fine but you may eventually need a pro to service it.

Installation Process: Tools, Steps, Common Mistakes

Most homeowners can complete a true DIY mini split install in 2 to 4 hours with basic tools. You will need a drill, a level, a torque wrench, a hole saw for the wall pass-through, and a wire stripper. You will not need a vacuum pump or manifold gauges for the units in this roundup, because the linesets are pre-charged.

Steps in order: mount the indoor backplate, drill the line set hole, mount the outdoor pad or bracket, run the lineset through the wall, connect the quick-connect fittings (torque to spec), wire the electrical, and power on. The most common failure point is the quick-connect torque: under-tighten and the joint leaks, over-tighten and you damage the seat. Reviewers in r/hvacadvice consistently identify this as the number one DIY mistake.

Warranty and DIY Coverage

Not all manufacturers honor DIY installs. Senville and Pioneer, for example, void the warranty on self-installed units per their terms, which has surprised owners in r/hvacadvice. MRCOOL, Zone Air, Albott, and Comfort Temps explicitly allow self-installation in their warranty terms.

Warranty length varies from 1 year (MEPTY, Uthfy, Garvee) to 7 years compressor and 5 years parts (MRCOOL, Albott, Comfort Temps). For most homeowners, the 5 to 7 year coverage is worth the price premium over a 1-year warranty.

Frequently Asked Questions

Final Verdict: Which Best DIY Mini Split Kit Should You Buy in 2026?

After comparing 10 models over several months, the Albott Easy DIY 12K is the best DIY mini split kit for most homeowners in 2026. It is the easiest to install, the most efficient in its voltage class, and the warranty terms explicitly allow self-installation. If you want the absolute highest owner rating and the best quiet operation, the MEPTY 12K is the runner-up, and for budget installs the Uthfy 12K delivers 19 SEER2 at a low price.

For larger rooms, the Garvee 18K 230V is the only true 230V option in this roundup, covering up to 1250 square feet. For smart-home integration, the MRCOOL 5th Gen 12K with Google Assistant and Alexa is the obvious pick. And if you want the most environmentally responsible refrigerant, the Comfort Temps 12K with R-454B is the future-proof choice.

The best DIY mini split kits for homeowners in 2026 all share three things: a pre-charged lineset, a quick-connect fitting system, and a warranty that does not punish you for installing it yourself. Pick the unit that matches your room size, your electrical panel, and your budget, and you will have a working heat pump before the weekend is over. For more guides on home HVAC and tools, check out our budget mini split roundup and our homeowner tool guides.
