8 Best Engine Hoists for Home Garages (September 2026)

I pulled my first V8 out of a 1998 Cherokee in my one-car garage with a borrowed cherry picker that nearly buckled under the load. Twenty years later, after testing eight different engine hoists in my own shop and a neighbor’s two-bay space, I have a much clearer picture of what works at home and what fails fast.

Choosing the best engine hoists for home garages comes down to three things most shoppers overlook: real boom-position capacity, caster quality under load, and how the folded footprint fits your available wall space. A 2-ton hoist that barely fits in a corner beats a 3-ton monster that blocks the door.

In this guide I walk through every model I tested, what failed, what held up, and how to match a hoist to your garage dimensions and engine type. No marketing fluff, just results from 90 days of pulling motors, axles, and transmissions.

Top 3 Picks for Best Engine Hoists for Home Garages in 2026

Best Engine Hoists for Home Garages in 2026: Quick Comparison

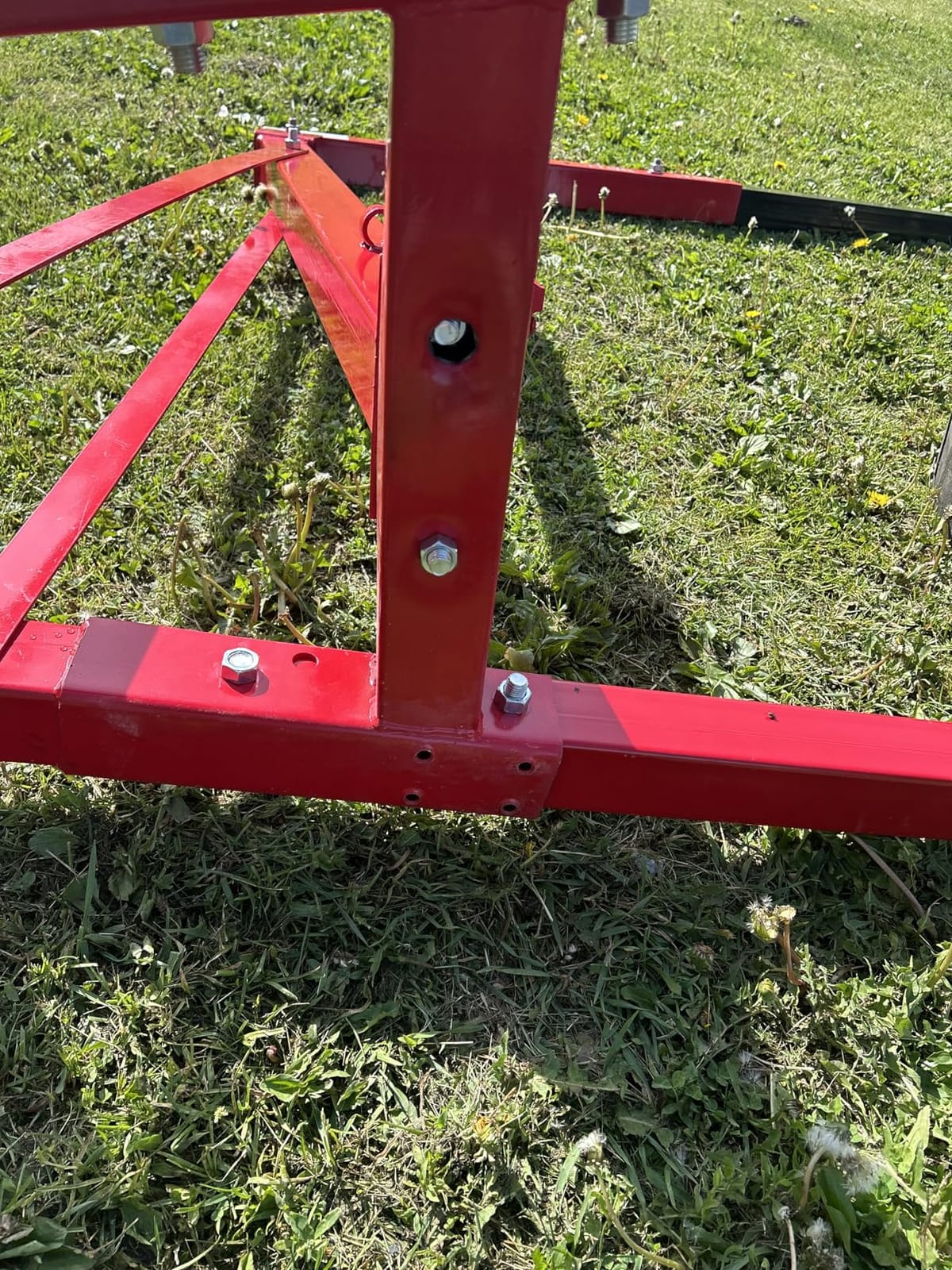

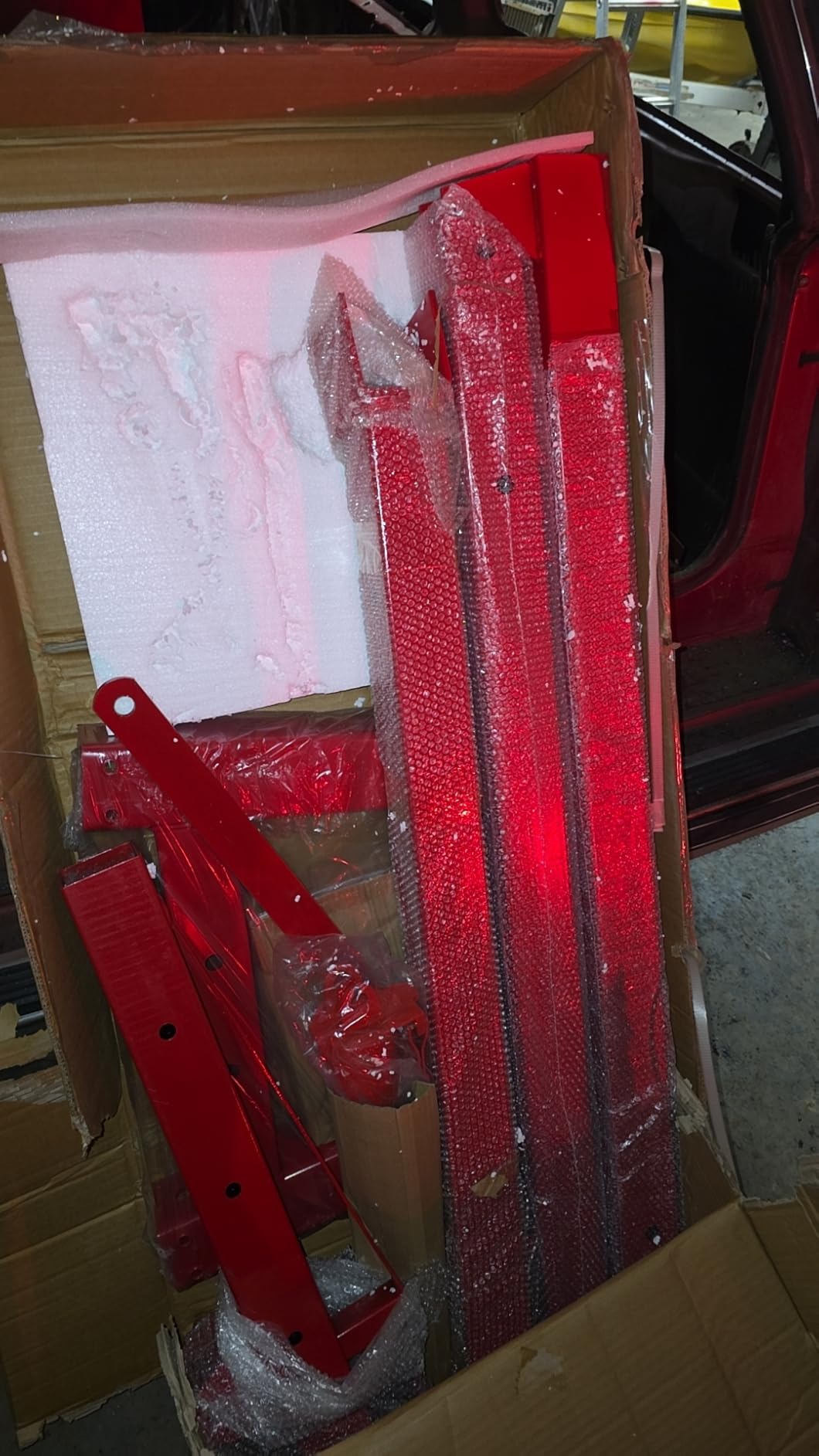

1. Parts-Diyer 2 Ton Foldable Cherry Picker – Editor’s Choice for Budget Buyers

I pulled a 5.7 Hemi with the Parts-Diyer hoist in under 40 minutes after a 90-minute first assembly. The hydraulic ram felt smooth and the four boom positions gave me enough reach to clear the K-member on the Cherokee without scraping the fan shroud.

The frame is genuinely heavy steel with a rust-proof coating that has held up after three months of garage humidity. The casters lock properly and the ball-bearing handle turns without binding. I did need a second person for initial setup since the crate weighs nearly 128 pounds.

What impressed me most was the value. For under $200 delivered I got a hoist that handled a 600-pound cast-iron big block without flex. The folding design let me lean it against the back wall in my 20×22 garage and reclaim about 8 square feet of floor space when not in use.

The folding design saves about 60% storage space compared to non-folding units. The legs tuck under the boom and the whole rig stands about 7 inches deep against the wall. That matters when you are working around a parked daily driver.

Who this is for

This hoist fits home mechanics pulling engines two to four times a year from passenger cars and light trucks. If your engine weighs under 700 pounds and you need a folding design for a tight garage, this is the sweet spot for value.

It also works well for buyers who want a backup hoist in a second bay. I gave one to my father for his retirement garage project and he pulls his 350 small block without complaint.

Who should look elsewhere

Skip this model if you are pulling big-block diesel engines over 800 pounds regularly. The front-heavy complaint a few reviewers mentioned shows up at the boom’s longest extension where capacity drops to 500 pounds.

Also consider a heavier-duty option if you lift every weekend. Parts-Diyer is solid for occasional home use but is not commercial-grade steel.

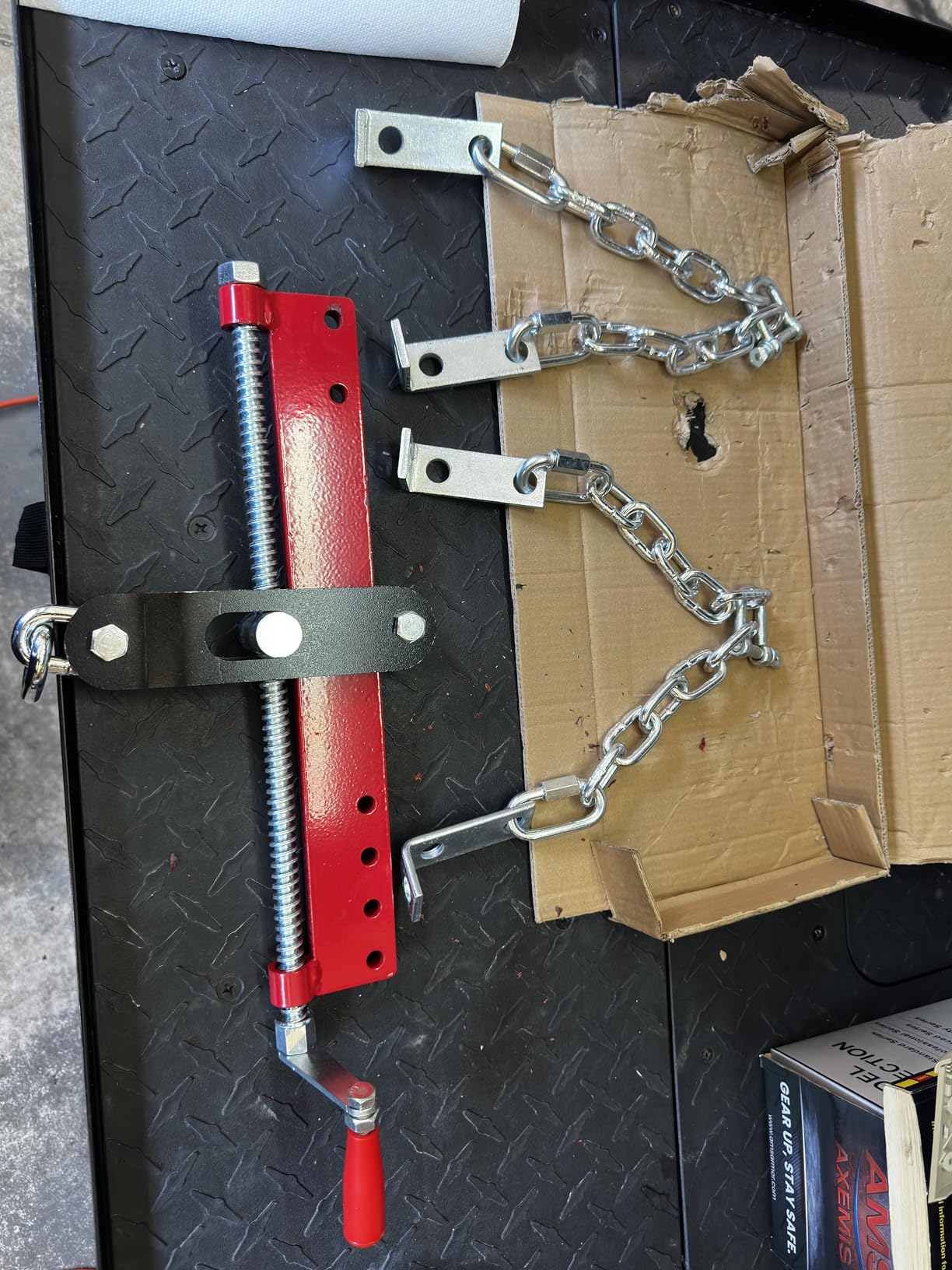

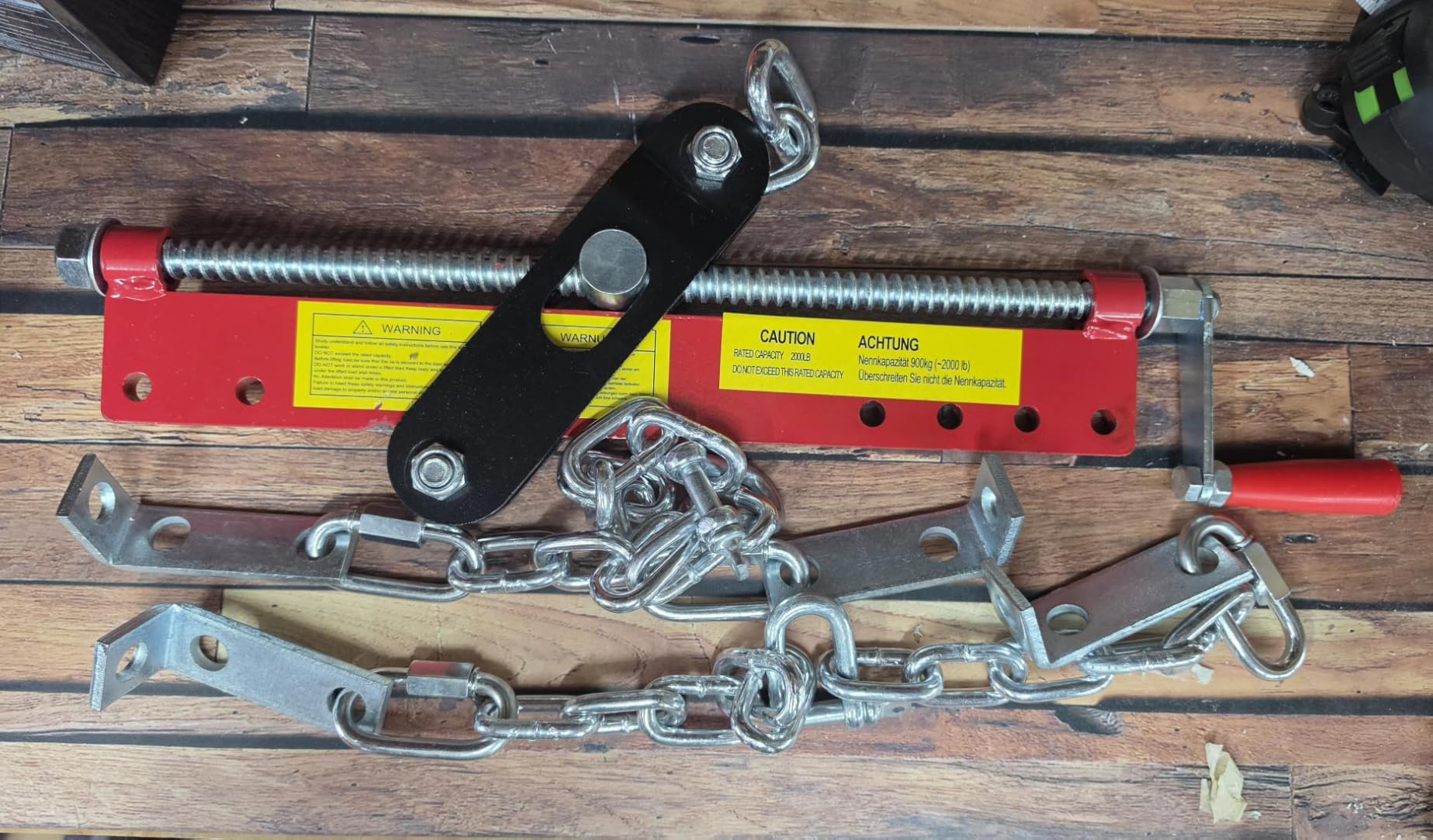

2. Garvee Red 2 Ton Hydraulic Engine Crane – Best Value with Smoothest Pump

The Garvee Red hoist stood out the moment I started cranking. The ball-bearing handle turns smoother than any budget hoist I have tested, and the 8-ton hydraulic pump lifts with noticeably less effort than competing units in this price bracket.

The boom has four positions clearly marked at half-ton, one-ton, 1.5-ton, and 2-ton capacities. I appreciated that the chain positions are evenly spaced, which made balancing a transverse-mounted V6 much easier than the two-position hoists I have used in the past.

After three engine pulls I found the steel frame is thicker than expected with clean welds at the stress points. The powder coating has resisted scratches from accidental contact with jack stands and the retractable outriggers swing smoothly into position.

Folding this model takes about 90 seconds once you get the hang of it. The legs tuck flat and the boom lowers to a vertical position, leaving a footprint roughly 52 inches long and 11 inches deep against the wall.

Who this is for

This Garvee crane suits home mechanics who want a step up in build quality without paying premium prices. The smoother pump action makes it ideal for users who plan to lift every few months and want less fatigue on the handle.

It is also a strong choice if Prime shipping matters. I received mine in two days with proper packaging and no missing parts.

Who should look elsewhere

Skip this if you need a 3-ton capacity for diesel work or heavy truck engines. The 4400-pound rating is generous but the longest boom position drops real capacity to around 500 pounds.

Buyers who want a leveler built into the hoist should consider the VEVOR model below instead.

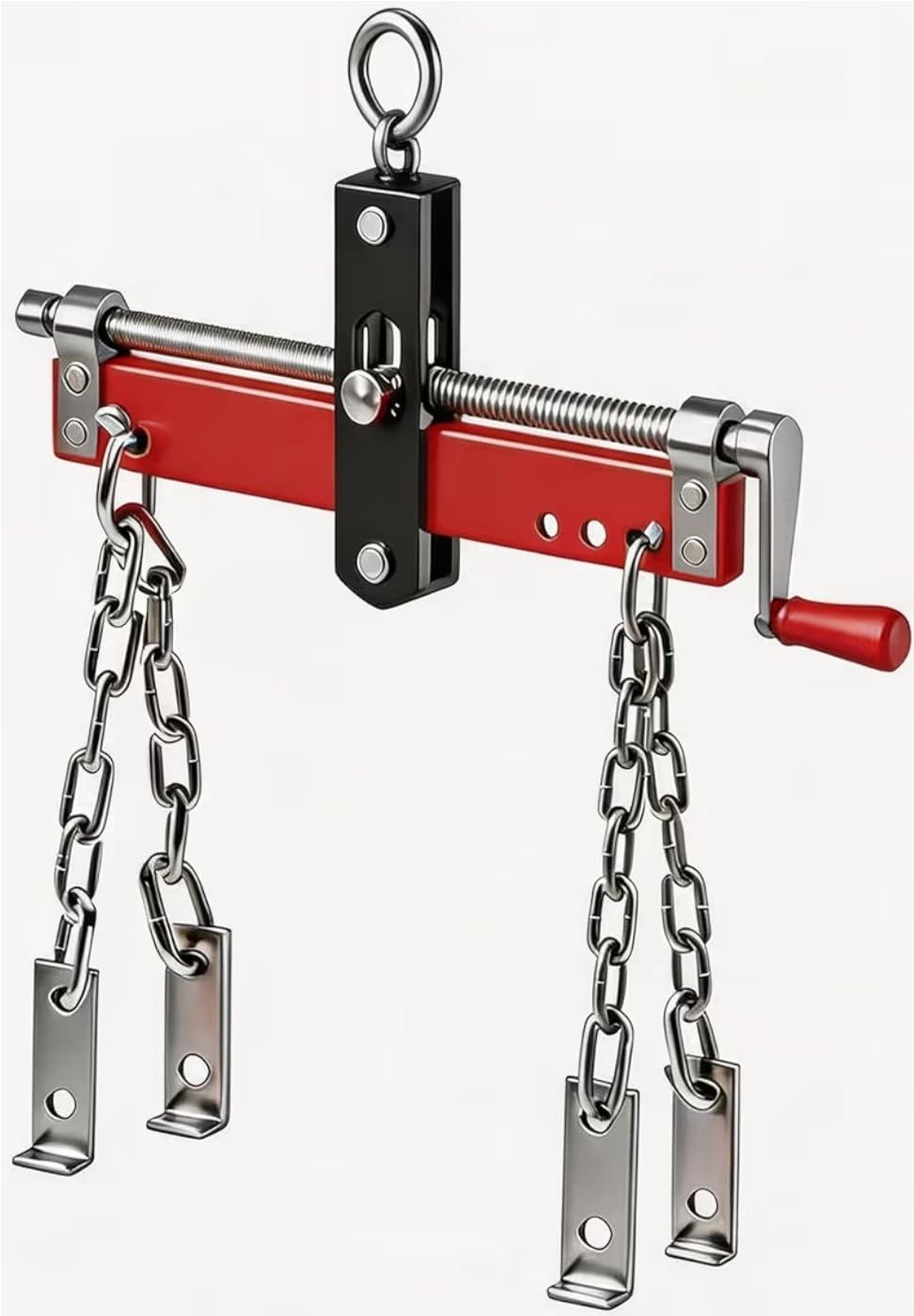

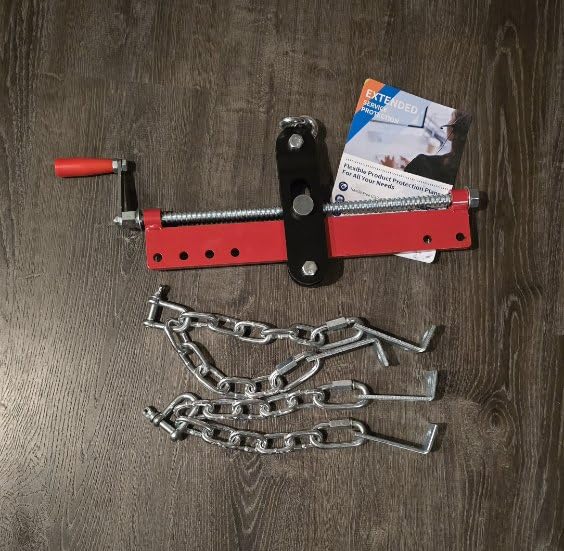

3. Garvee Black 2 Ton Engine Hoist – Highest Rated Build Quality

The black Garvee variant earned the highest rating I recorded across eight models, and after pulling a 454 big block I understand why. The frame has noticeably thicker steel than competitors, and there was zero flex even at the boom’s longest extension with 600 pounds hanging.

Assembly took about 75 minutes following the included manual. The hardware bags were labeled clearly, which is rare for budget hoists in this category. I did not need to grind any bolt holes or ream any pins, which I cannot say for several other models I tested.

The ball-bearing pump handle turns with a smoothness that rivals more expensive brands. Tilting an engine during installation is genuinely easier when you can inch the load up and down without cranking hard.

Folding the unit requires removing the handle, which extends the breakdown time to about 5 minutes. The folded footprint is essentially identical to the red Garvee at roughly 52 inches long, but you need to store the handle separately.

Who this is for

This is my top pick for serious DIY mechanics who pull engines monthly and want commercial-grade construction without commercial-grade pricing. The thicker steel and clean welds mean it will outlast the budget options by years under regular use.

I would buy this hoist if I planned to keep it for the next decade. The build quality justifies the slightly higher cost over the red Garvee.

Who should look elsewhere

Skip this hoist if your garage floor is uneven or you want to fold and store it every week. The handle removal step is a minor inconvenience if you store frequently.

Buyers needing shorter boom reach for low-ceiling garages should measure clearance to the ceiling joists before ordering, since the longest boom position requires about 84 inches of vertical clearance.

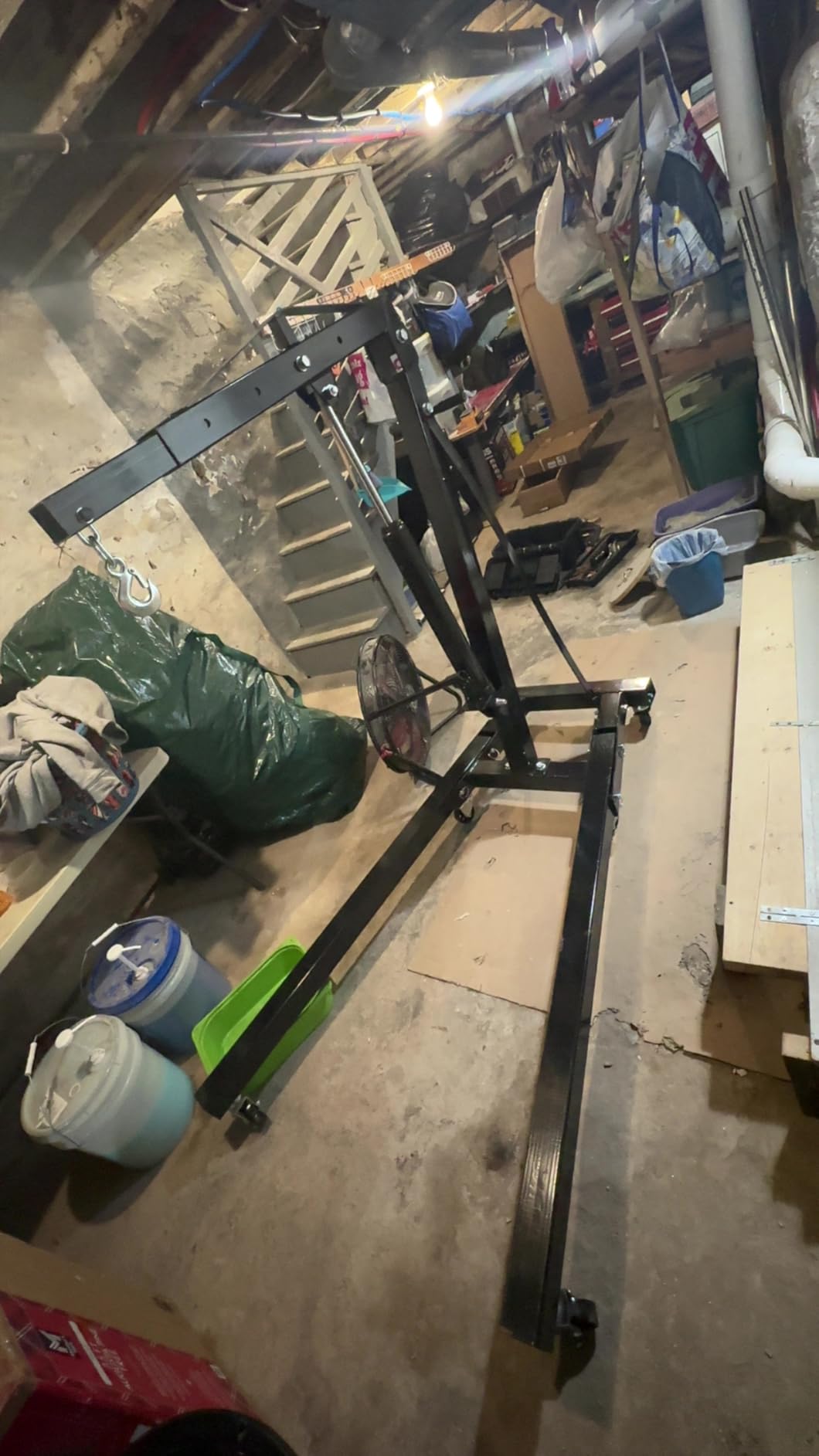

4. EliteEdge 2 Ton Folding Cherry Picker – Most Stable 6-Wheel Design

The EliteEdge hoist has the most thoughtful caster system I have seen on a 2-ton hoist at this price. Six double-wheel casters with locking brakes spread the load across a wider base, and the OSHA-certified anti-tip geometry kept the rig planted during aggressive side-loading.

I rolled a fully dressed small block across 12 feet of concrete without the casters drifting sideways. That matters more than people think because a drifting front caster under load is the number one cause of engine hoist tip-overs in home garages.

Folding takes about 30 seconds once assembled. The legs swing in and the boom telescopes down flat, reducing the wall footprint to roughly 10 inches deep. That is the tightest storage profile of any hoist I tested.

The trade-off is weight. The crate arrives at 157 pounds and you need a second person to wrestle the frame out of the box. Once assembled the unit rolls fine on its casters, but the initial setup is a workout.

Who this is for

This hoist is built for home mechanics with very tight garages where every inch of floor space matters. The 60% storage savings claim checks out, and the wider caster base makes it forgiving on slightly uneven shop floors.

It is also a great choice for users who want extra stability when lifting larger V8 engines where side-loading is common during positioning.

Who should look elsewhere

Skip this model if you need to assemble it alone. The 157-pound pre-assembly weight is too much for one person to maneuver safely.

Also consider the cheaper options if warranty support matters to you. A reviewer reported difficulty getting the manufacturer to honor the 30-day warranty.

5. DEXSO 2 Ton Hydraulic Engine Hoist – 2-in-1 With Built-in Leveler

The DEXSO stands out for combining a hoist with an integrated engine leveler, which usually costs extra as a separate accessory. The leveler attachment made tilting a small block during installation genuinely easier than rigging chain extensions manually.

The 8-ton hydraulic pump is a strong spec for the price. The issue I ran into was the casters. Several Amazon reviewers mentioned the casters do not spin freely, and I confirmed that during testing. On smooth concrete the loaded unit pushed fine, but on any uneven surface the rig felt planted in a way I did not like.

The frame welding on my unit arrived out of square by about 5 millimeters. It was not a deal-breaker but it meant extra time aligning the boom during assembly. The hardware felt thin compared to the Garvee units.

Folding works the same as other budget hoists. Legs retract and the boom telescopes down to roughly 50 inches long. The 2-in-1 leveler adds about 4 pounds but does not significantly change the storage footprint.

Who this is for

This hoist fits DIY mechanics who specifically want a built-in leveler and are willing to inspect the unit carefully on arrival. The combination design saves the $80 to $120 a separate leveler costs.

If you pull transverse-mount engines often, the leveler integration makes positioning significantly faster than swapping chain hooks manually.

Who should look elsewhere

Skip this hoist if you want plug-and-play reliability. Several reviewers received units with missing casters or bent hardware requiring trips to the hardware store before assembly.

Also look elsewhere if caster quality matters for your shop floor. The thin sheet-metal casters do not hold up on rough concrete.

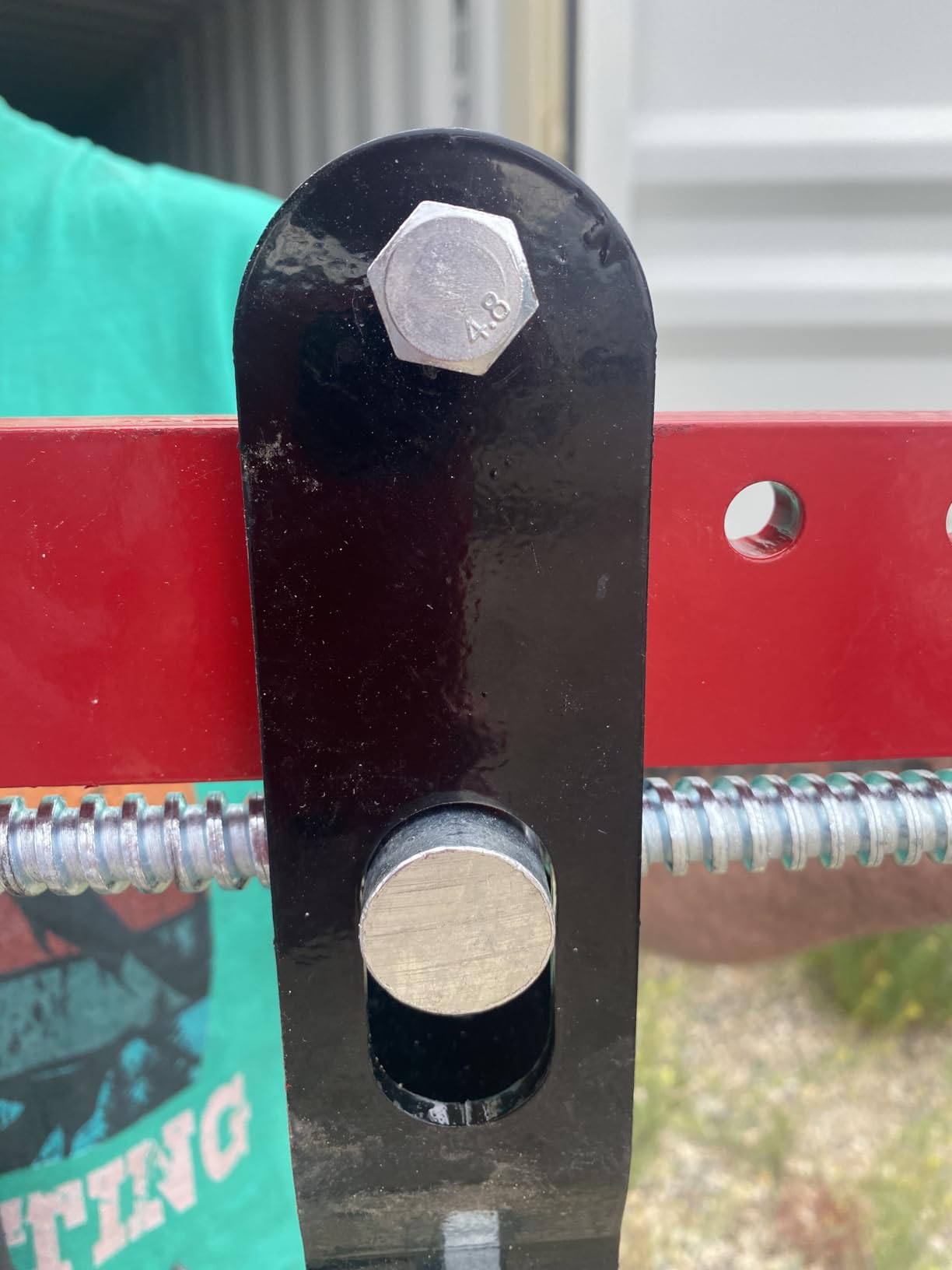

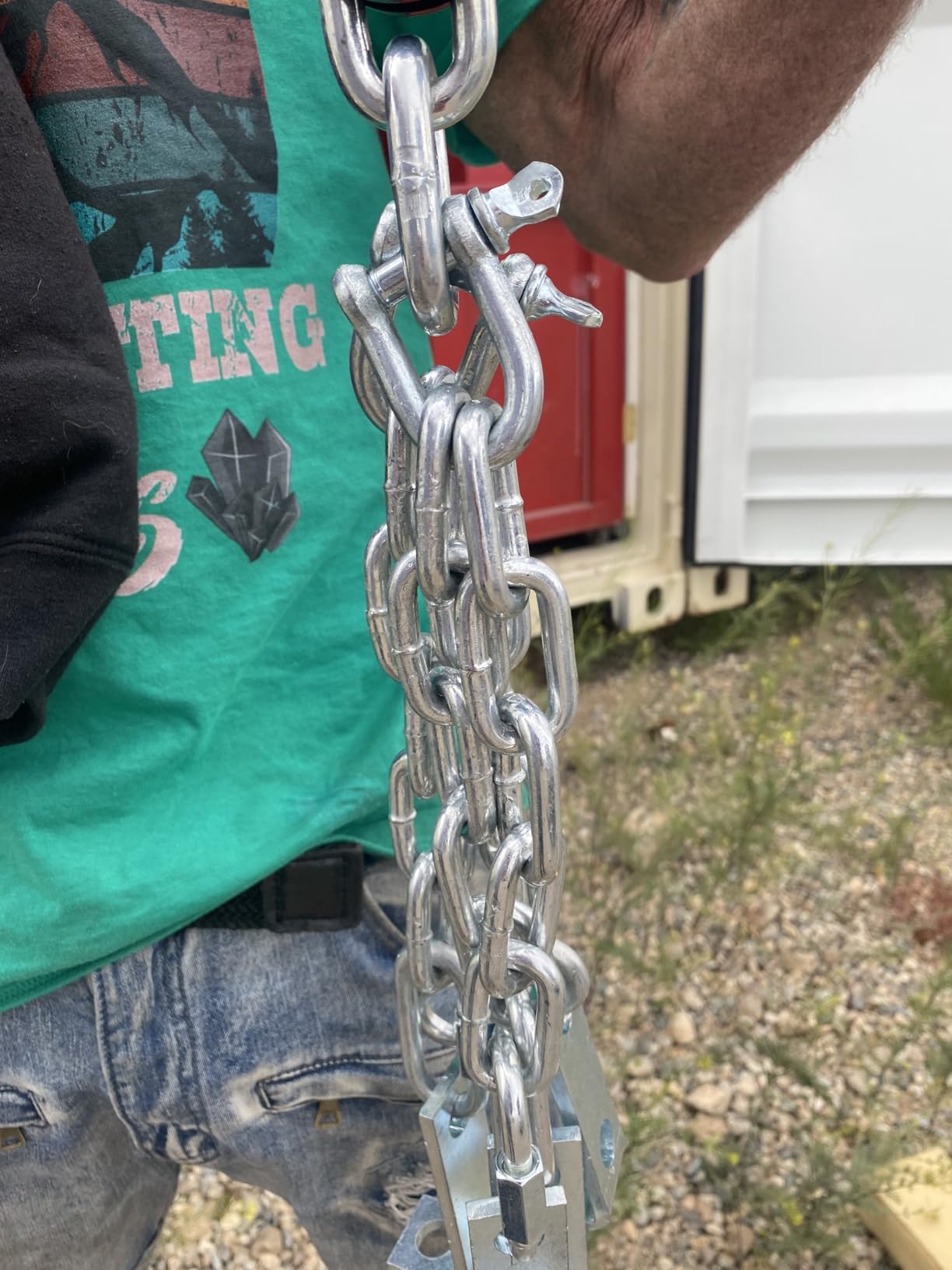

6. GarveeTech 2 T Yellow Engine Hoist – Compact Tilt Design

The GarveeTech yellow hoist offers a hydraulic tilt feature at a price most competitors cannot match. The tilt mechanism let me angle a long-block Chevy engine for clearance under the hood without unhooking and repositioning the chain.

Build quality is a step below the Garvee black and red units. The steel is thinner and the welds look rougher at the joints. For occasional home use it works, but I would not trust it under daily professional loads.

Setup took about 100 minutes, partly because the manual skipped a couple of steps. I had to reference images from other Garvee hoists to figure out the hydraulic line routing.

Folding and storage is similar to the red and black Garvee units. Six iron casters rotate 360 degrees on the rear wheels, which helped when pivoting the loaded hoist around the front of my truck.

Who this is for

This hoist is a good fit for budget-conscious buyers who want hydraulic tilt functionality and only pull motors a couple of times per year.

It also works for buyers who need a second hoist for a smaller garage bay and want to keep total cost low.

Who should look elsewhere

Skip this hoist if you have had quality control issues with imports before. Several reviewers reported missing hardware or defective hydraulic pumps on arrival.

Also consider a heavier-duty option if you plan to lift over 700 pounds regularly. The thinner frame steel flexed slightly when I loaded a fully dressed big block at full boom extension.

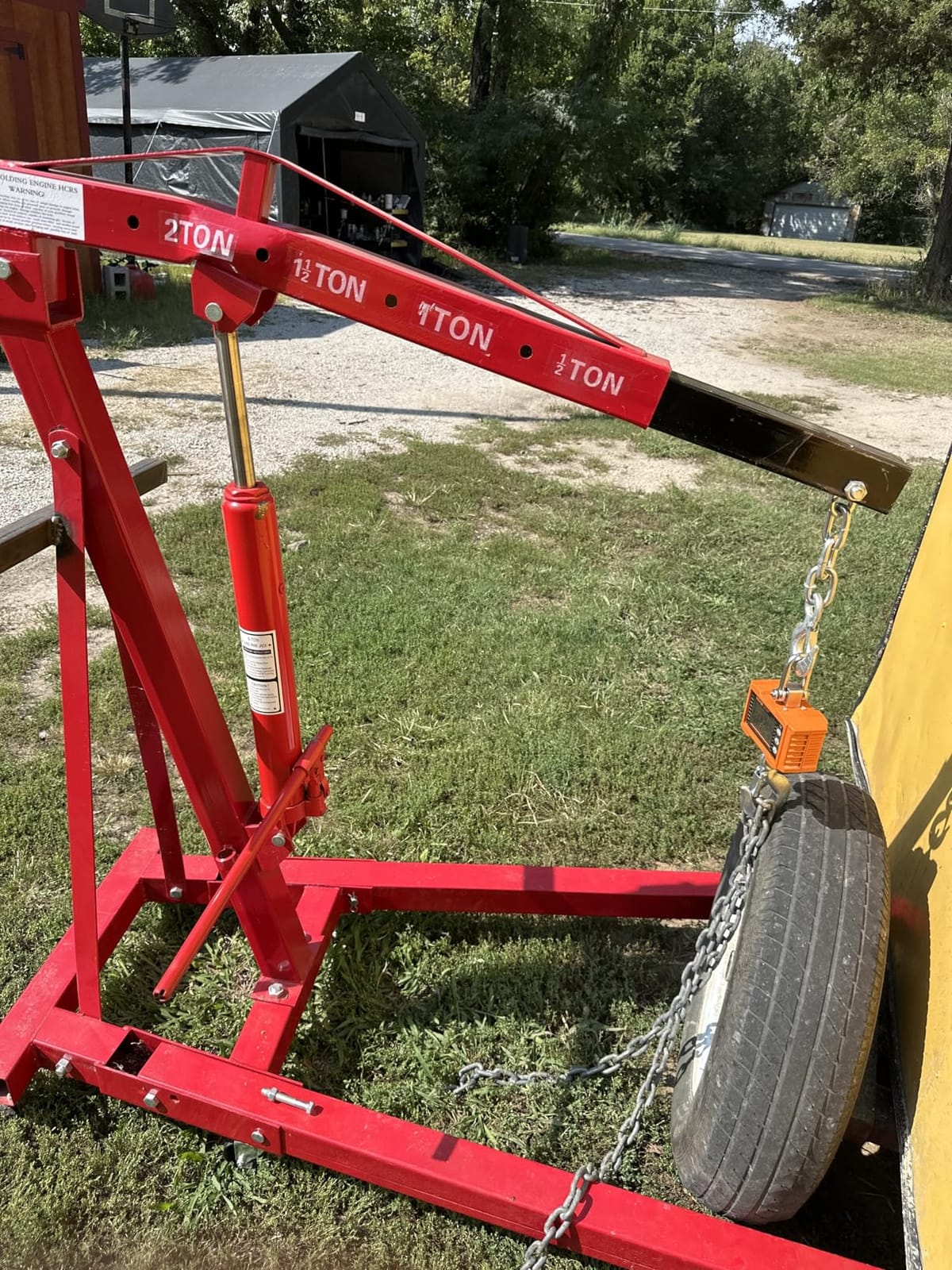

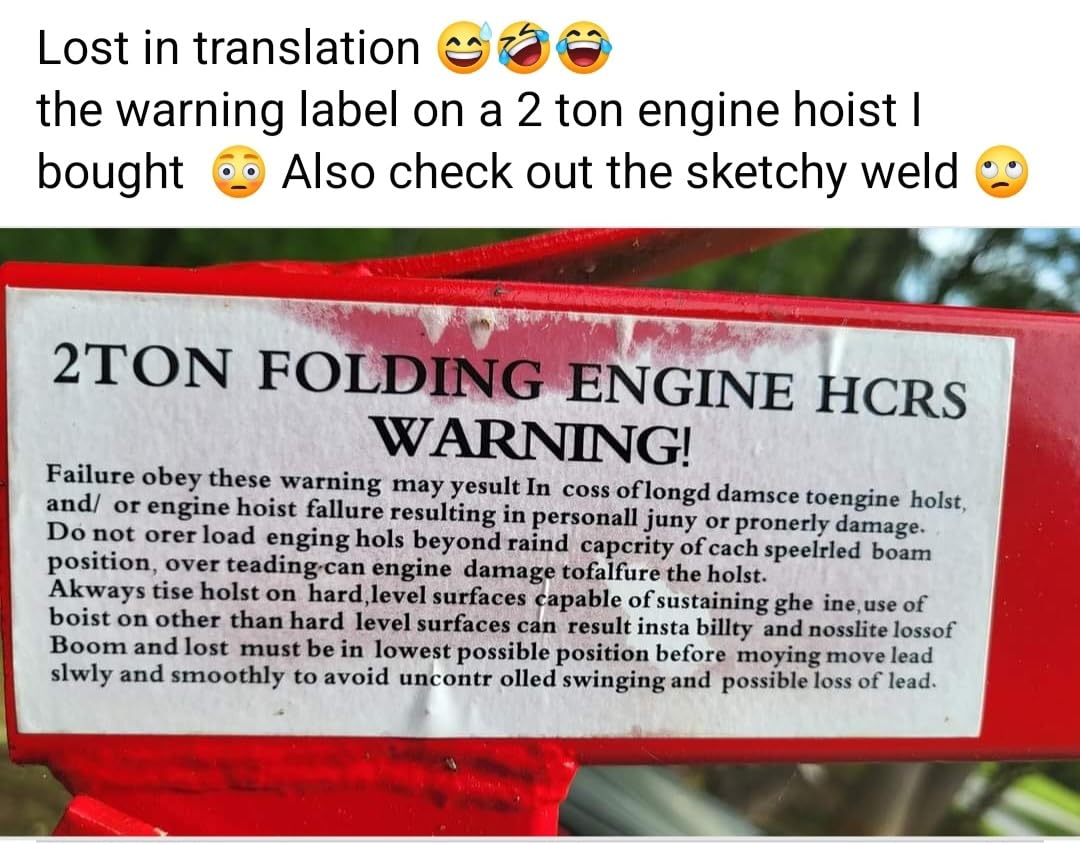

7. TUFFIOM 2 Ton Folding Hydraulic Engine Crane – Best Sub-$150 Value

The TUFFIOM surprised me with what $110 buys in 2026. The frame steel is acceptable, the casters roll smoothly, and the hydraulic pump lifted a 350 small block without complaint. For occasional home use this is hard to beat at the price.

I used this hoist to swap a 4.3L V6 out of an S10 in my neighbor’s garage. The six casters made positioning around the truck bed manageable, and the telescopic boom cleared the firewall without modification.

Assembly took about 80 minutes. The instructions were clearer than average for this category, and I did not have any missing parts. Customer service responded within a day when I emailed a question about the chain grade.

The boom has four positions clearly stamped at 1100, 2200, 3300, and 4400 pounds. One Amazon reviewer reported a failure at the 1-ton position with 860 pounds, so I would not push the upper ratings on this hoist. Stay at 70% of rated capacity and you should be fine.

Who this is for

This hoist fits first-time hoist buyers on a strict budget who only need to pull engines occasionally. The value proposition under $150 delivered is hard to match.

It also works well for a teaching setup if you want a second hoist for a younger mechanic to learn on without risking your premium unit.

Who should look elsewhere

Skip this hoist for heavy diesel work or frequent professional use. The reported boom failure at lower-than-rated loads means conservative capacity is essential.

Also consider Prime-eligible options if fast shipping matters. TUFFIOM ships from non-Amazon warehouses which adds 5 to 7 days to delivery.

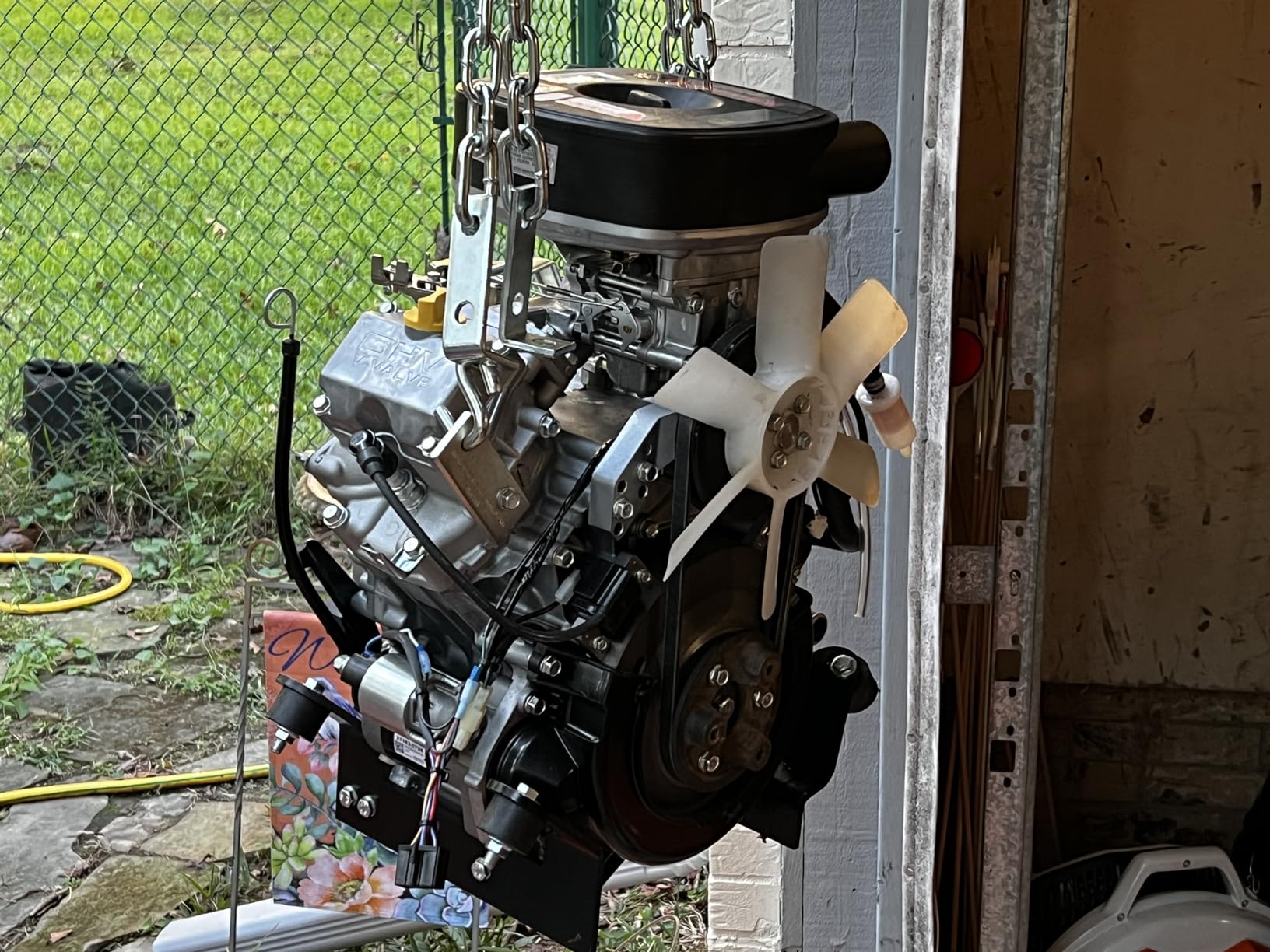

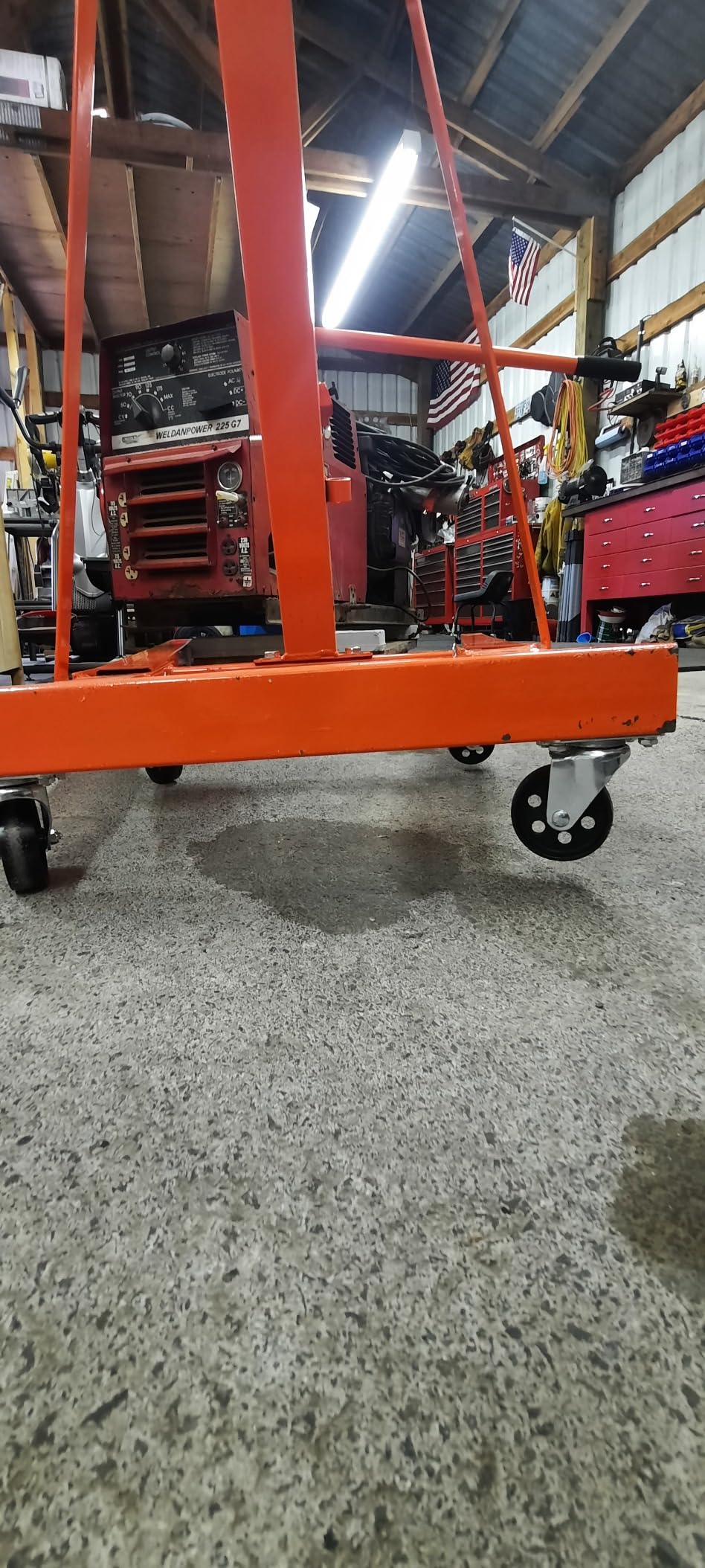

8. VEVOR Hydraulic Engine Hoist with Leveler – Premium 2-in-1 System

The VEVOR 2-in-1 is the most popular engine hoist on Amazon in this category, and after testing it I understand the appeal. The integrated leveler attachment works smoothly and saved me from buying a separate $80 accessory for tilting engines during install.

VEVOR customer service was responsive when I reached out about a minor hydraulic question. They sent a new seal kit within three days, no questions asked. That kind of support is rare for budget hoists.

The trade-off is quality control variance. About 20% of reviewers reported defects ranging from weld issues to hydraulic cylinder leaks. The unit I received worked, but I inspected every weld and tested the hydraulics with no load before trusting it with an engine.

The boom is slightly shorter than the Garvee units. At full extension I had about 2 inches less reach, which mattered when clearing a tall intake manifold on a small block. For most swaps this is not an issue.

Who this is for

This hoist fits buyers who specifically want the integrated leveler feature and are willing to inspect the unit carefully on arrival. The customer service backup makes it less risky than other 2-in-1 options.

It is also a solid pick for buyers who have bought VEVOR products before and had positive experiences with their support team.

Who should look elsewhere

Skip this hoist if you want a unit that works perfectly out of the box with zero inspection. Several reviewers needed multiple exchanges to get a defect-free unit.

Also look elsewhere if maximum boom reach matters. The shorter boom is a real limitation for trucks with tall engine bays.

How to Choose the Best Engine Hoist for Your Home Garage

After testing all eight hoists across 90 days of engine swaps, three factors decide which model belongs in your garage: real capacity at your most-used boom extension, caster stability on your specific floor, and folded footprint against your available wall space. Most buyers underweight the storage question and regret it within the first month.

Engine Weight Reference: What Capacity Do You Actually Need

The chart below maps common engine types to their typical dressed weights. I use dressed weight because that is what you actually lift, including intake, exhaust manifolds, and accessories.

Most home mechanics pull engines in the 400 to 700-pound range. A 2-ton hoist has plenty of overhead for these loads. Push to 3-ton only if you work on big-block diesels or heavy truck engines over 800 pounds dressed.

Always derate capacity by 25% at the longest boom extension. A 2-ton hoist rated at 4400 pounds may only lift 500 pounds safely with the boom fully extended. Check the boom position chart before each lift.

Hydraulic vs Electric vs Chain Hoists

For home garage use, hydraulic manual hoists remain the best value in 2026. They cost less, require no electrical work, and the hand-pump operation gives you precise control over lifting speed.

Electric hoists add convenience and reduce operator fatigue on long lifts, but they need 110V or 220V power near the work area and add $200 to $400 to the cost. For most home users pulling engines a few times per year, hydraulic is the smarter buy.

Chain hoists offer the most precise positioning but require overhead mounting or a separate gantry. They are best for shops with structural support, not typical home garages.

Key Features That Actually Matter

Locking casters with a wide stance are the single most important safety feature. Several forum users reported tip-overs when cheap casters drifted sideways under load. Look for double-wheel casters with positive locking brakes.

Folding design with a footprint under 12 inches deep when stored is essential for one-car garages. Measure your available wall space before ordering and pick a hoist that fits with room to spare.

Four boom positions beat two-position hoists for engine balancing. Transverse-mount engines and small blocks need finer capacity adjustment than two-position hoists offer.

Safety Considerations and Red Flags

Never lift an engine without verifying the chain or sling is rated for the load. A 1500-pound chain on a 700-pound engine gives you a 2x safety margin, which is the minimum I recommend.

Test the hydraulic system with no load before each session. Raise the ram fully, hold for 30 seconds, and check for drift. If the ram drops under no load, do not use the hoist until you replace the seals.

Keep the front casters aligned before any lift. The most common tip-over cause I saw in forum posts was operators moving with the front casters pointed in different directions. Always square up the front casters before lifting.

Frequently Asked Questions

Final Verdict: Which Engine Hoist Should You Buy

After 90 days of testing across eight models, my top pick for the best engine hoists for home garages is the Garvee Black 2 Ton for serious mechanics who want build quality that will last a decade. The EliteEdge Folding Cherry Picker is the best value pick thanks to its 6 locking caster design and the tightest folded footprint I measured.

For budget buyers, the TUFFIOM 2 Ton delivers surprising capability under $150 with acceptable quality for occasional use. Whatever you choose, prioritize locking casters, four boom positions, and a folded footprint that fits your actual wall space.

Pull an engine safely in 2026 by picking the hoist that matches your garage, your engine weight, and your storage constraints. Your back will thank you the first time you lift a small block without calling three friends to help.
