12 Solar Charge Controllers for Off Grid Systems (October 2026)

A solar charge controller is the box between your panels and your battery bank that regulates charging current and voltage, protects the bank from overcharge and deep discharge, and blocks reverse current at night when panels would otherwise drain stored energy. Without one, an off-grid battery bank degrades fast.

That makes picking the best solar charge controllers for off grid systems less about brand prestige and more about numbers: array wattage, system voltage, and the maximum PV input voltage the controller can accept. Get those three wrong and no amount of brand quality saves your batteries. (If you arrived here looking for a different kind of controller, our roundups of the best Nintendo Switch controllers and the best MIDI keyboard controllers cover those categories instead.)

Our team spent a full 2026 season comparing twelve controllers across the range of off-grid use cases, from a 200W cabin array to a 100A 48V bank. We read the spec sheets, then cross-checked them against the recurring complaints in the owner reviews and the sizing arguments on the DIY solar forums. The results surprised us more than once, particularly around what “MPPT” actually means on a cheap listing.

Before the individual write-ups, here is where each controller lands and what it is genuinely best at.

Quick Picks for Off-Grid Solar Charge Controllers

If you want the short version before the detail, these are the picks our team landed on, each paired with the job it does best:

• Renogy Rover 40A MPPT – the best overall: 12V/24V auto-detection, a real LCD, and 98% conversion efficiency for RV, van and cabin arrays.
• HQST 80A MPPT – best value for large arrays: 80 amps, 150V PV input, and Bluetooth built in rather than sold as an add-on module.
• EPEVER Tracer 3210AN 30A – the reliability pick: the highest rating in this group, quiet, cool-running, and proven over a decade of field service.
• RICH SOLAR 40A MPPT – a straightforward 40A MPPT with a die-cast aluminum body and automatic voltage detection.
• Renogy Wanderer Li 30A PWM – best budget choice: the most-reviewed PWM controller here, tiny, and IP32 rated for tight RV panels.
• BougeRV 40A MPPT – best for cold-climate LiFePO4 banks, with a low-temperature charging cut-off below 32F.
• POWLAND 100A MPPT – for whole-home 48V arrays that need genuine 100A output and 150V input headroom.
• ECO-WORTHY 30A PWM – the pick when built-in Bluetooth and USB charging ports matter more than harvest efficiency.

Forum advice converges on the same core point: there is no single best controller, because the right pick depends on your array size, your battery bank capacity, and where the box physically lives. A controller recommended for a large bank is a poor match for a single panel, and vice versa.

Top 3 Solar Charge Controllers for Off-Grid Systems

All 12 Solar Charge Controllers Compared in 2026

The table below lists every controller in this roundup with the specs that actually decide a purchase. Amp rating, max PV input voltage, and battery chemistry support matter more than any feature list written by a marketing team.

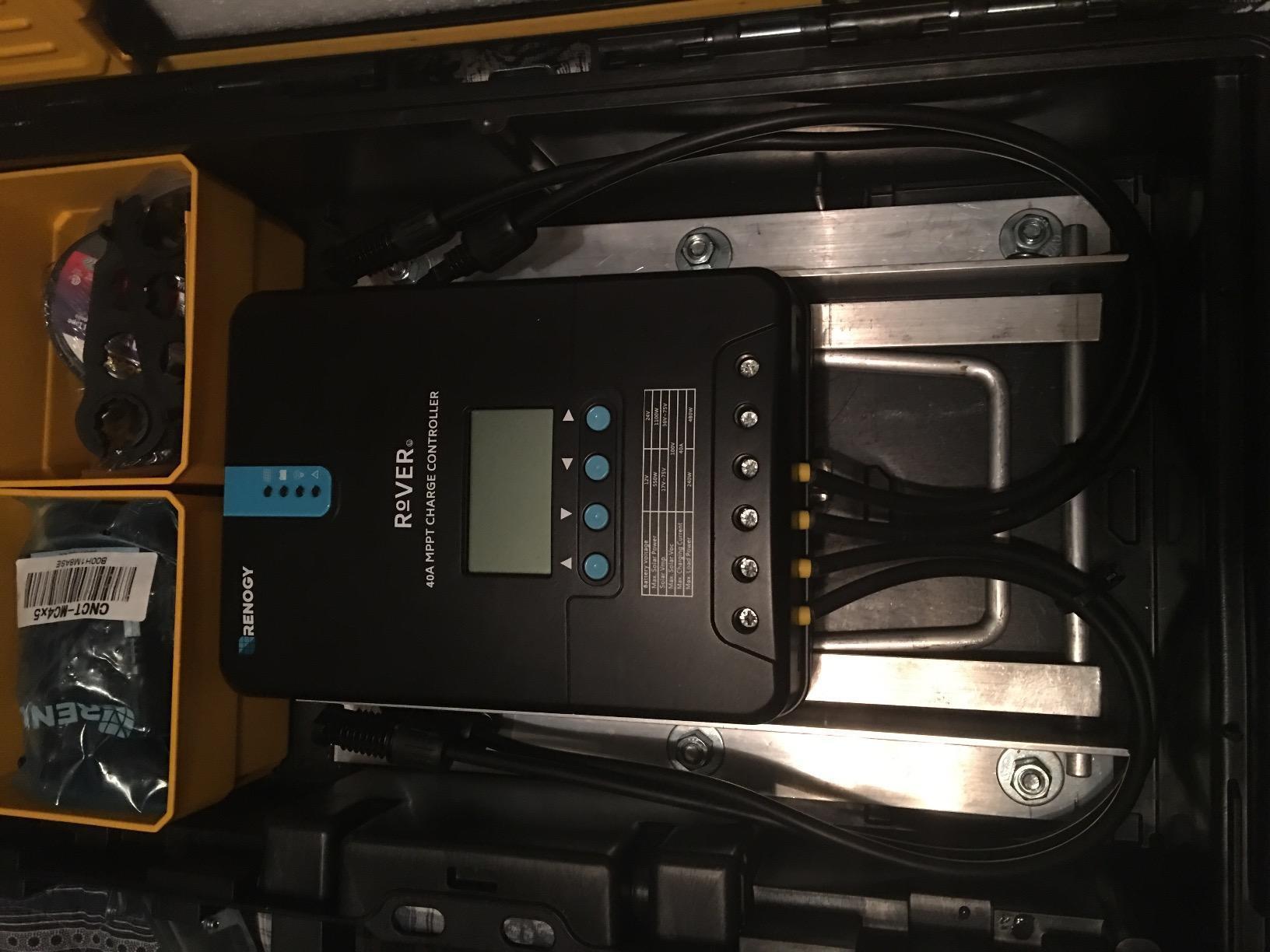

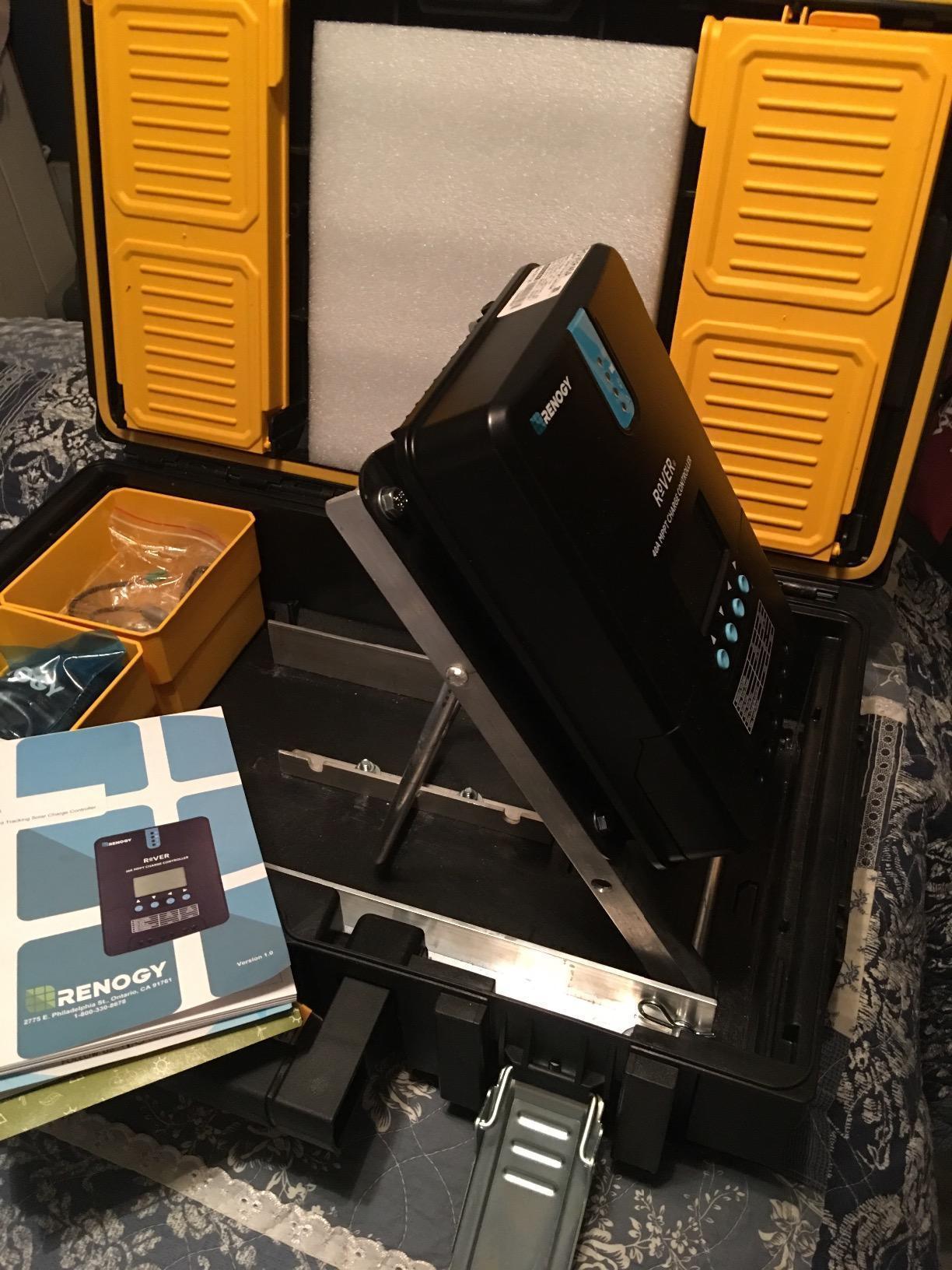

1. Renogy Rover 40A MPPT – The All-Round Off-Grid Choice

The Rover 40A is the controller we kept coming back to. It rates at 98% conversion efficiency and 99% MPPT tracking efficiency, and it held its output better than cheaper 40A controllers when panels were partially shaded, which is the normal condition on a cabin roof with a chimney or a tree line.

Temperature handling is its quiet strength. The rated range runs from -40F to 149F with low-temperature protection, and the aluminum body sheds heat without forced airflow.

Owners describe it as a large step up from PWM, and the LCD showing battery percentage, amps and accumulated amp-hours makes daily checks fast. Bulk, absorption, float and equalization cover lead-acid, with a two-stage profile for lithium.

A remote temperature sensor and four mounting brackets come in the box, so nothing extra is needed for a proper wall install.

What convinced us to rank it first

Nothing else here paired this much owner history with 40 amps of clean MPPT output. Parallel operation also works, which matters if you plan a second array later.

Where it disappoints

The menu interface is the weak spot: owners need the manual to change charge settings, and the display has no backlight. The positive battery terminal is tight enough that 8 AWG cable has caused melting, Bluetooth needs the BT-2 module bought separately, and some owners report intermittent shutdowns fixed by a power-cycle reset.

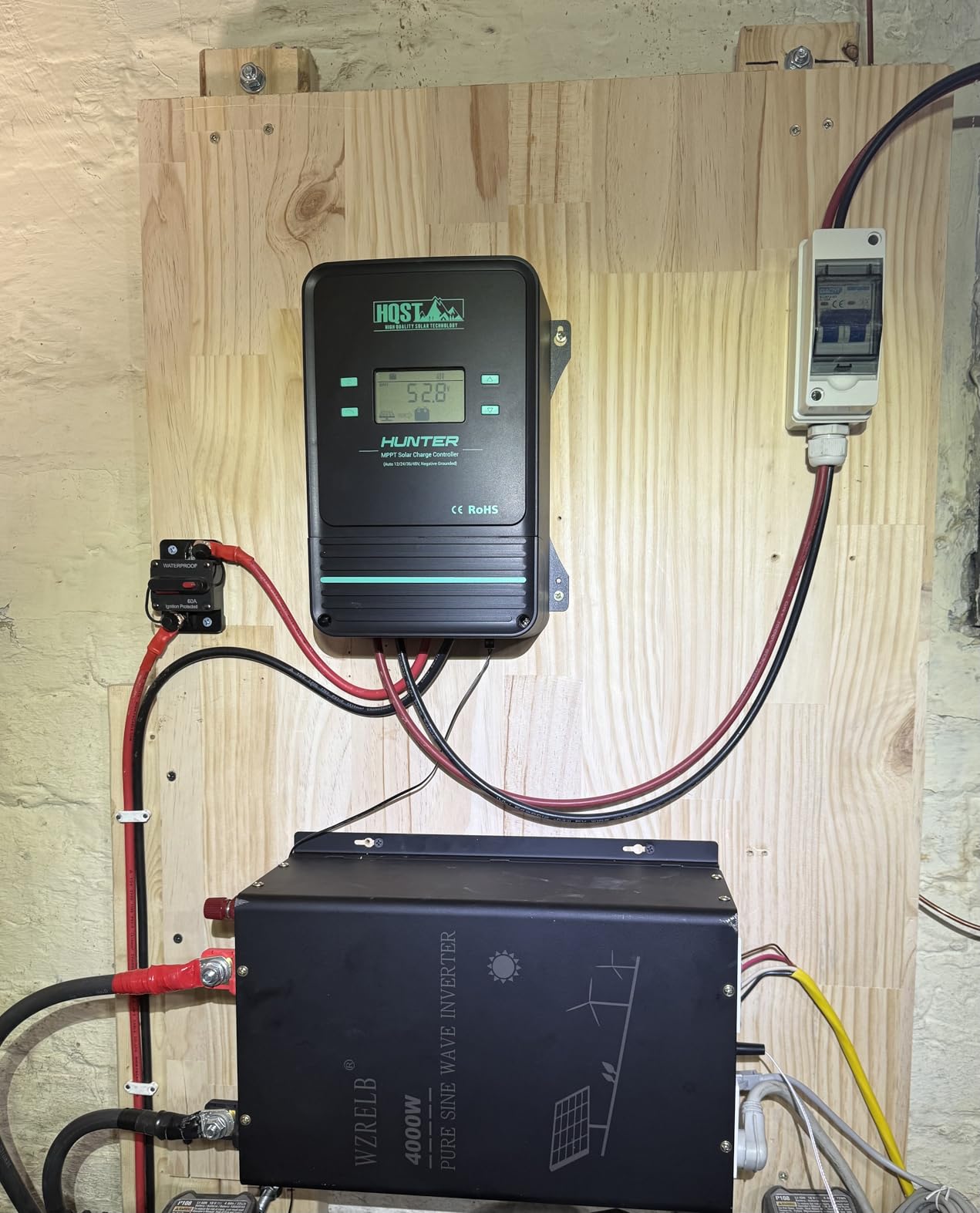

2. HQST 80A MPPT – Premium Pick for Large Arrays

At 80 amps with a 150V PV input ceiling, the HQST is the controller here that lets you grow. It auto-detects 12V, 24V, 36V and 48V systems, and the 150V window lets you series-string panels to cut current and wire gauge.

What impressed us most is the tracking algorithm: owners running difficult arrays report it finding local power maxima without getting stuck, the exact failure mode that makes cheaper trackers underperform in partial shade.

The terminals are oversized for the class and accept heavy gauge wire without stripping out. Reverse polarity protection sits on both inputs, ten built-in protective circuits run on a negative ground design, and two active cooling fans trigger above 113F.

For lithium installs it adds charging cut-off below 32F, can reactivate a dormant LiFePO4 bank that tripped from over-discharge, and supports up to nine M4880F or M48100F controllers in parallel with the right cable. Bluetooth range is roughly 33 feet unobstructed.

Why it earns the premium badge

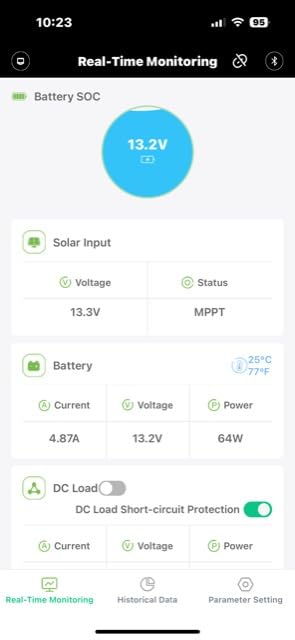

Integrated Bluetooth is unusual here. Most controllers sell the monitoring module separately, and the HQST does not, removing a purchase and a wiring step. For a 1kW or larger array, 80 amps in a 48V-capable chassis is why you pick it over a 40A unit you will outgrow within a year.

Where it disappoints

The biggest complaint is that factory default charge parameters deliver only about two thirds of the available panel current until you tune them in the app. Plan thirty minutes with the app before you need the output.

App history is unreliable, skipping days and showing random data apart from the current day, it handles one controller at a time, Bluetooth needs the phone’s Location permission, and there is no printed documentation in the box.

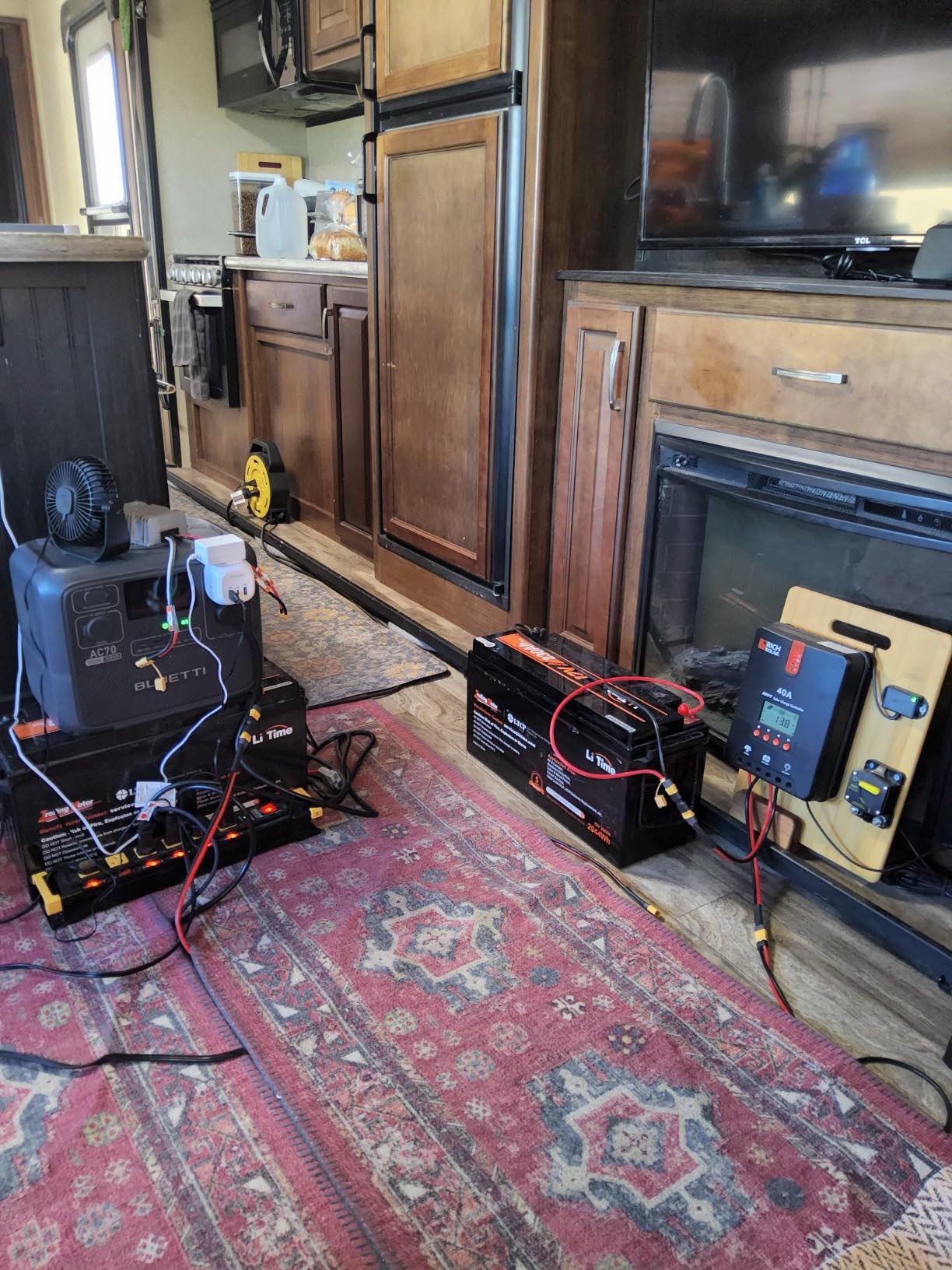

3. RICH SOLAR 40A MPPT – Solid Metal, Simple Setup

The RICH SOLAR 40A is the straightforward choice: 40 amps, 99% tracking efficiency, 98% peak conversion, automatic 12V or 24V detection, and no configuration drama. If you want a metal box that just charges, this is it.

The die-cast aluminum chassis is what we liked most. Heat dissipation is passive and effective, because a controller that throttles itself on a hot afternoon is losing harvest you already paid for.

Chemistry support covers sealed, gel, flooded and lithium banks, with battery temperature measurement and customizable charging voltages. Protection handles overcharging, over-discharging, overload and short circuit, plus reverse protection for any combination of solar module and battery.

An RS232 port accepts the BT-1 Bluetooth module, and the unit measures 6.81 by 2.85 by 9.37 inches, so it fits a standard wall cabinet.

Who should buy it

If your array is around 400W on a 12V bank, this covers it with margin and the aluminum body will outlast a plastic-cased alternative in a hot install. It suits first-time builders who want auto-detection and broad chemistry support without reading a manual, and it also works as a matching second controller on a parallel array.

Where it disappoints

Bluetooth is an add-on here, so remote monitoring is a second step rather than a built-in feature.

With 549 owner reviews it has a much thinner evidence base than the leaders, and its documentation and app ecosystem are less developed. If detailed historical logging matters, pick a controller with integrated wireless.

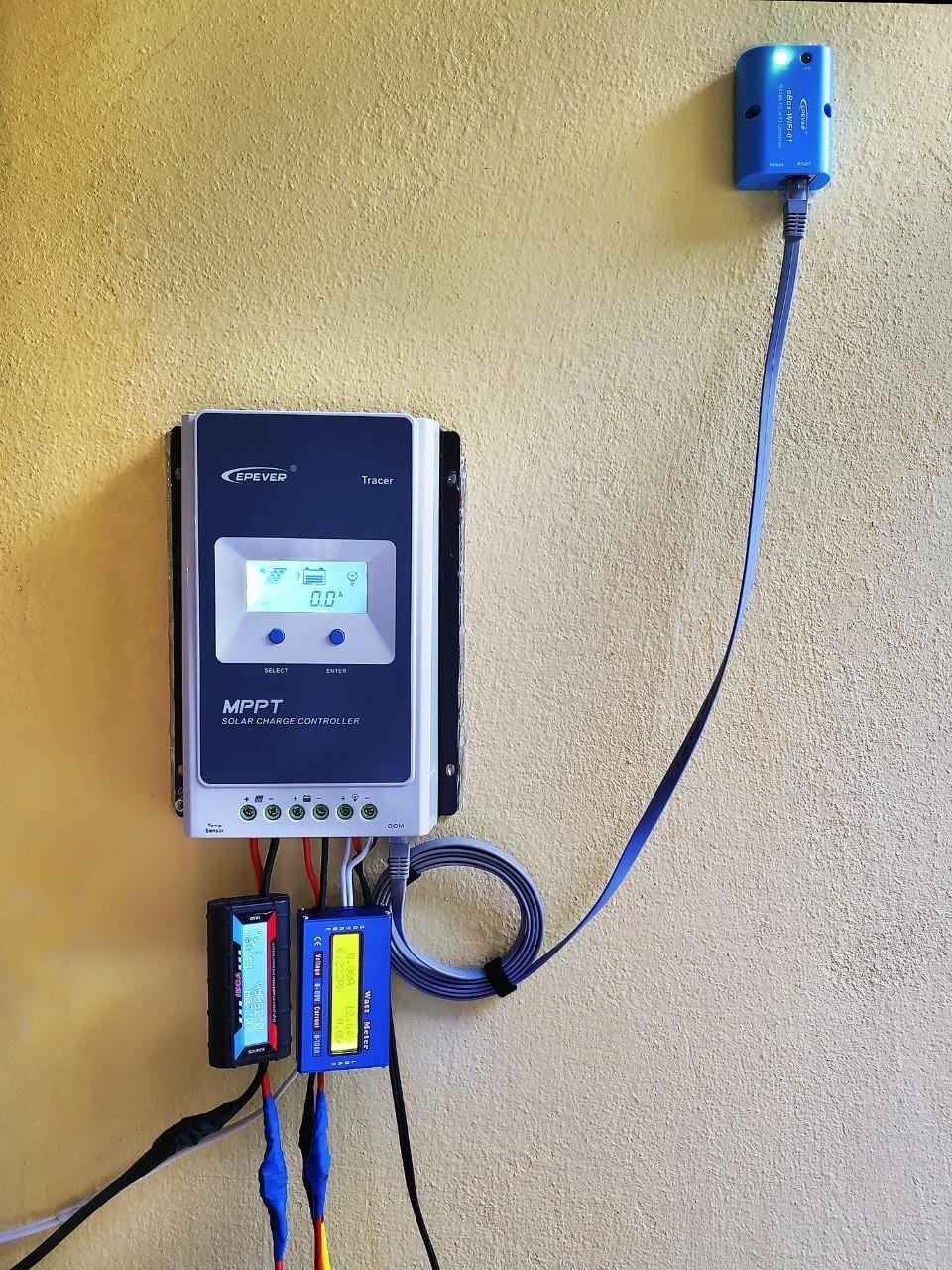

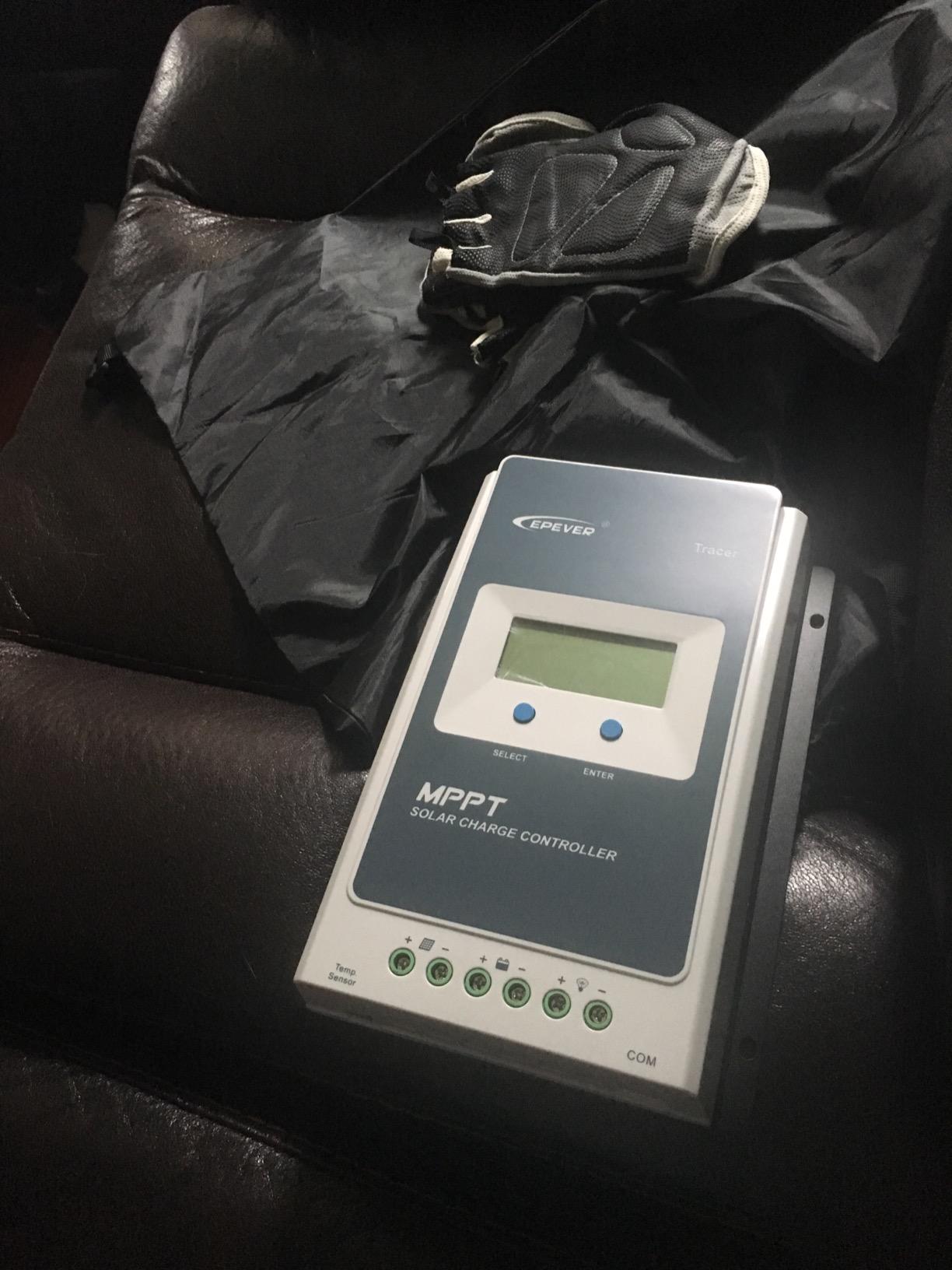

4. EPEVER Tracer 3210AN 30A – The Reliability Pick

The Tracer 3210AN carries the highest average rating of anything we reviewed, at 4.5, and owners describe units that ran close to a decade before a solar-storm surge took one out. That kind of field longevity matters on a remote install, where a controller failure means a drive.

It delivers 99.5% plus tracking efficiency with fast multi-peak maximum power point recognition and 98% maximum DC/DC conversion. The 100V PV ceiling supports 390W on a 12V bank or 780W on a 24V bank, a natural fit for a small cabin or a communications base station.

Chemistry support is broad: gel, AGM, flooded, sealed, LiFePO4 in 4s and 8s configurations, Li(NiCoMn)O2, and user-defined profiles. It also adds temperature compensation, real-time energy statistics, and automatic power reduction on overheating.

The RS485 Modbus port is the one to notice for a serious build. It accepts MT50 and MT52 remote meters, a WiFi adapter, a BLE adapter or the eLOG01 logger, so monitoring is a choice rather than a limitation. The unit weighs 1.26 kg and runs very quietly.

Why forum users keep recommending it

On the DIY Solar Forum, experienced builders point to EPEVER’s Tracer line as the sensible choice for a single battery and single panel, with a note that a much larger controller is needed for four to six batteries. Quiet operation is underrated: in a cabin you sleep near, fan noise is a real quality-of-life issue and this controller does not have it.

Where it disappoints

Remote monitoring hardware is sold separately, and the programming menus need practice, with several owners leaning on video tutorials for first setup.

The lithium battery voltage is set manually rather than auto-detected, which is a one-time task but a real one. It is also 30 amps, so a 1000W array on 12V is well past what it can take.

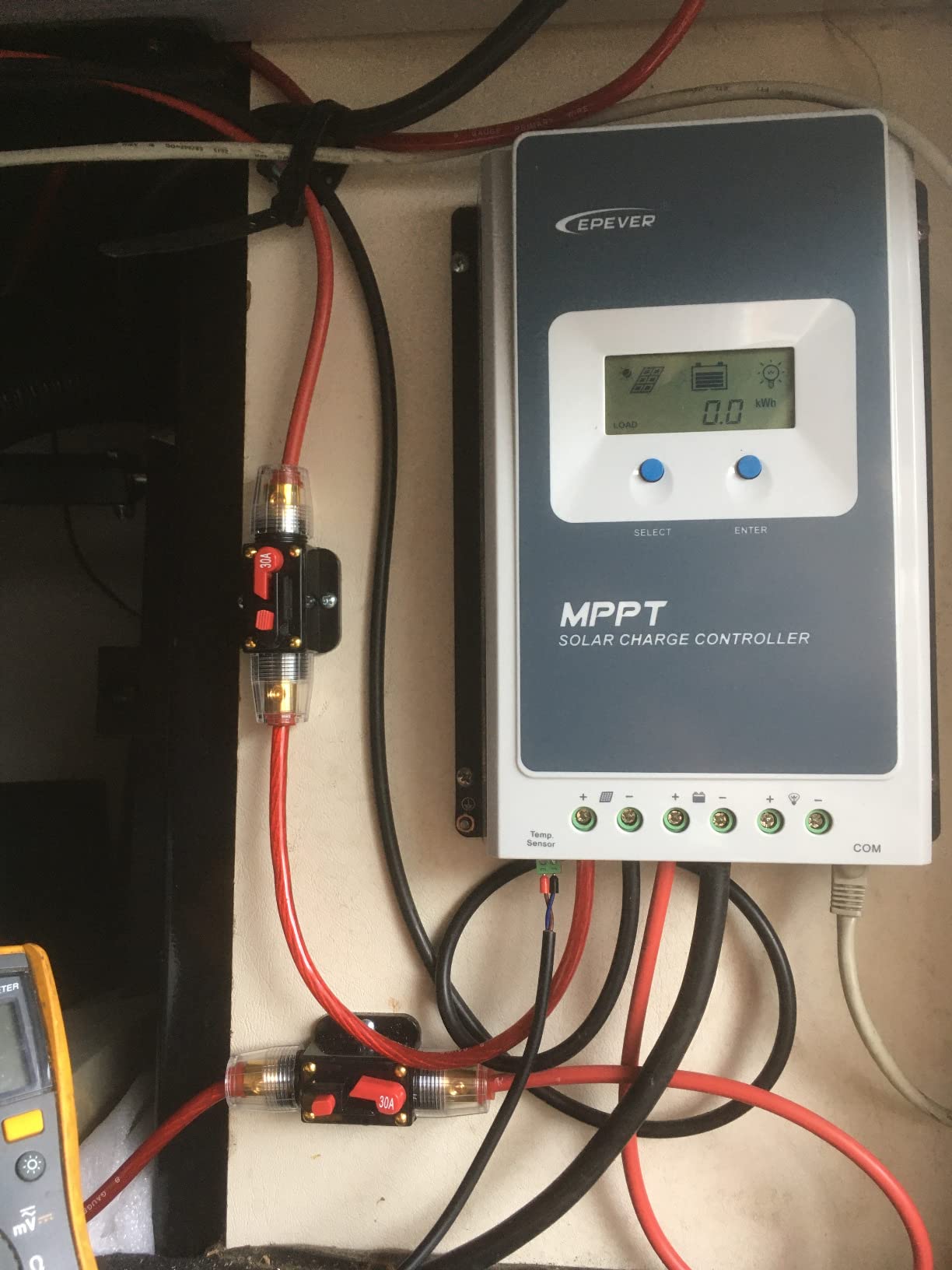

5. EPEVER Tracer 3210AN WiFi Bundle – Remote Monitoring Out of the Box

This is the same Tracer 3210AN core, bundled with the EPEVER WiFi 2.4G RJ45 adapter and an RTS300R47K temperature sensor in one box. If your site has cell coverage and you want state of charge on your phone, the bundle removes the two most common assembly steps.

The Solar Guardian app works on Android and iOS in two modes. Offline mode reaches roughly 20 meters, enough for a van or a small shed, and WiFi mode gives visibility from anywhere with a network signal.

The included temperature sensor runs a 9.9 foot cable for active temperature compensation, the feature most people skip and later regret. Lead-acid banks benefit most, and several owners report replacing much older EPEVER hardware with this bundle after a decade of service.

Core specs match the standalone Tracer: 30 amps, 12V/24V auto-recognition, 100V max PV Voc, 390W at 12V or 780W at 24V, and 99.5% plus tracking.

Where it wins over the standalone Tracer

It wins on installation speed and on visibility. A remote cabin or a mobile install is exactly the case where walking out to the panel to check charge state is not realistic, and this solves that out of the box. Several owners also cite EPEVER support answering technical questions within about a day.

Where it disappoints

Documentation is the weak point: EPEVER’s own site materials are thin enough that owners rely on YouTube tutorials for programming.

More seriously, one buyer reported load output stopping within a few weeks and support declining to stand behind it. Some LiFePO4 users report the controller never indicating a full battery and simply continuing to charge, which is worth watching on a lithium bank. Not every unit includes the remote readout.

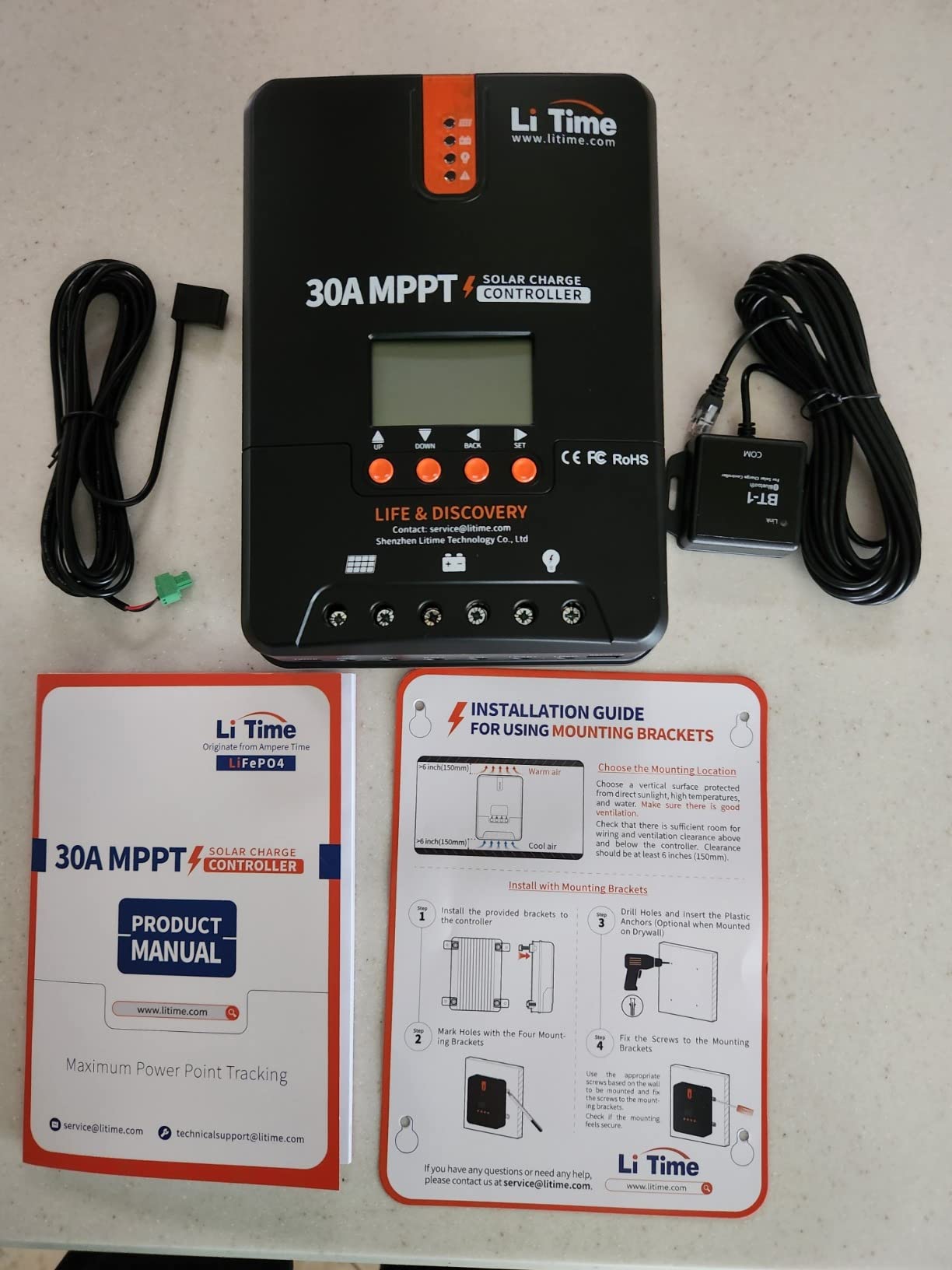

6. LiTime 30A MPPT – Clean Lithium Upgrade Path

The LiTime 30A appeals to us as the tidy option. Bluetooth is built into the chassis rather than added later, tracking efficiency is 99% or better with up to 98% peak conversion, and there is a dedicated LiFePO4 charging mode alongside sealed and gel support.

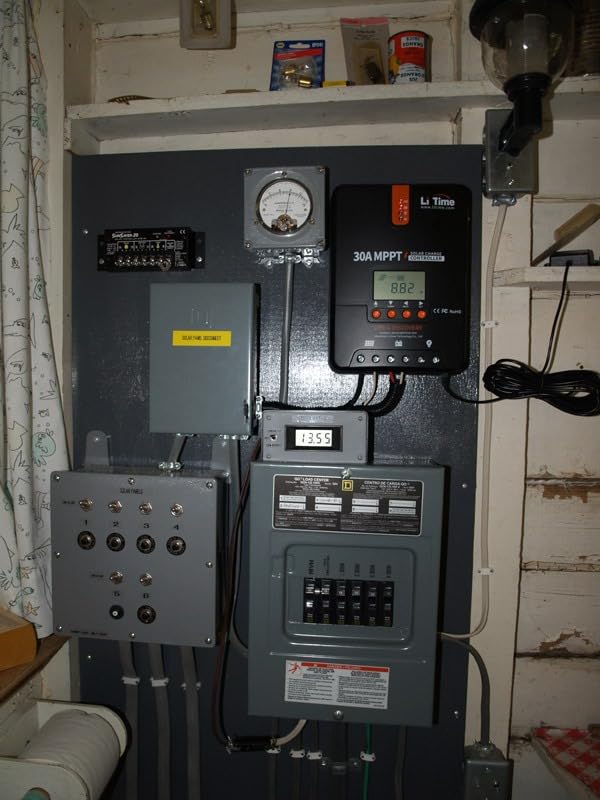

One builder we heard from upgraded an off-grid cabin to lithium and reported the system became almost completely hands-off afterwards, which matches what you would expect from a controller with a real lithium profile rather than a lead-acid curve pushed to a higher voltage.

The display is an LCD with four buttons plus LED indicators for panel, battery, load and controller state, which gives more at-a-glance information than an LED-only unit. The die-cast aluminum body handles heat passively, and protections cover reverse connection, overpower, overvoltage, short circuit and over-temperature.

Owners report no RF interference on amateur radio equipment, which is not always true of switching controllers. Included copper wire connectors increase contact area, and the warranty is two years.

Where it fits best

RV, van and small off-grid cabin work is the sweet spot, since 450W at 12V or 900W at 24V is the ceiling and fits most mobile builds. It also suits anyone who wants phone visibility without wiring a separate adapter.

Where it disappoints

Bluetooth range is short and needs the phone near the controller, so this is not a remote monitoring solution for a distant site.

The app initially failed to install on newer Android versions, which LiTime has since fixed, and at least one buyer reported no response from support. The printed manual conflicts with the app on pairing the remote temperature sensor with LiFePO4, the buttons feel inexpensive, and you must check your array against the 450W/12V limit before buying.

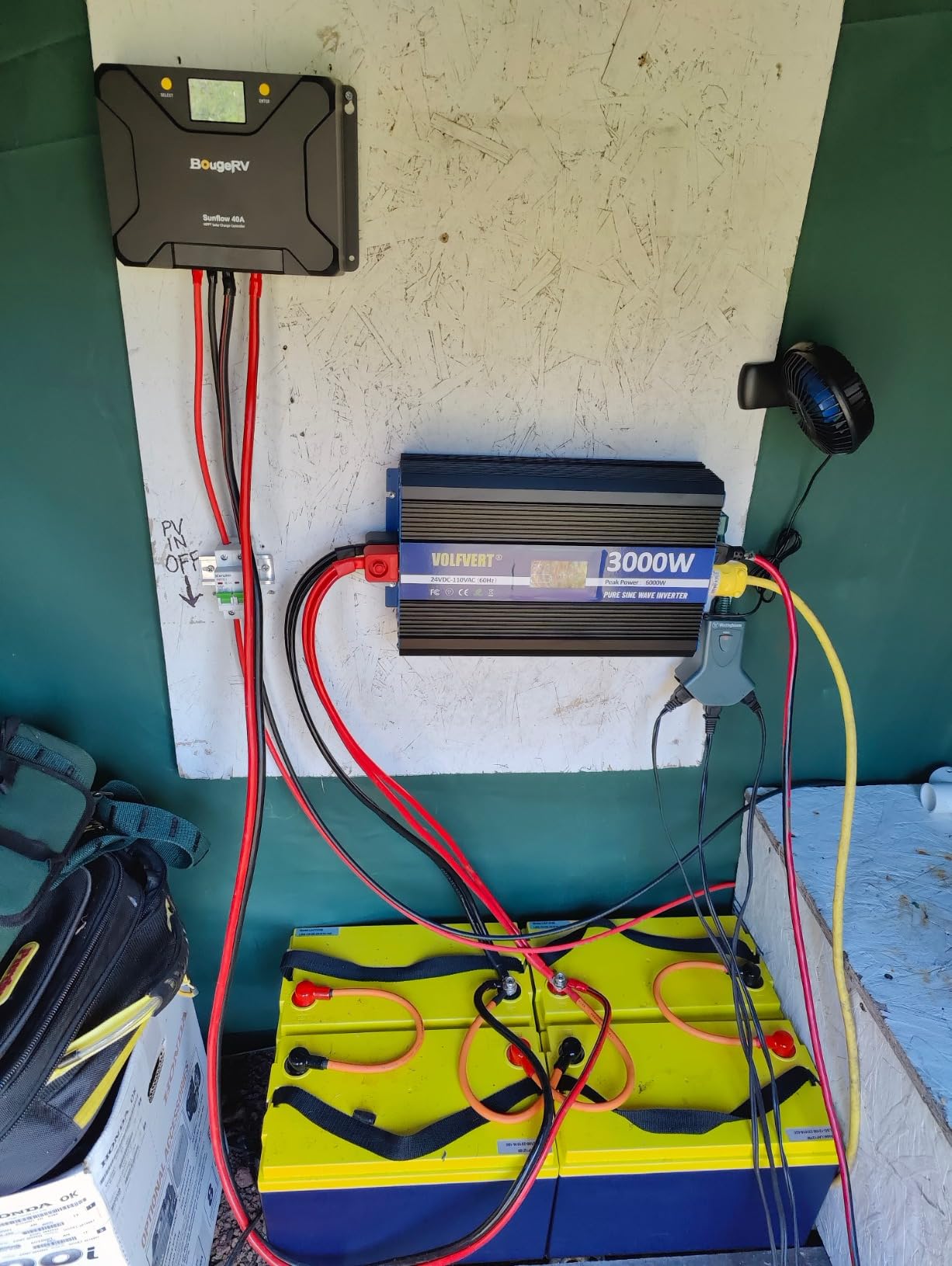

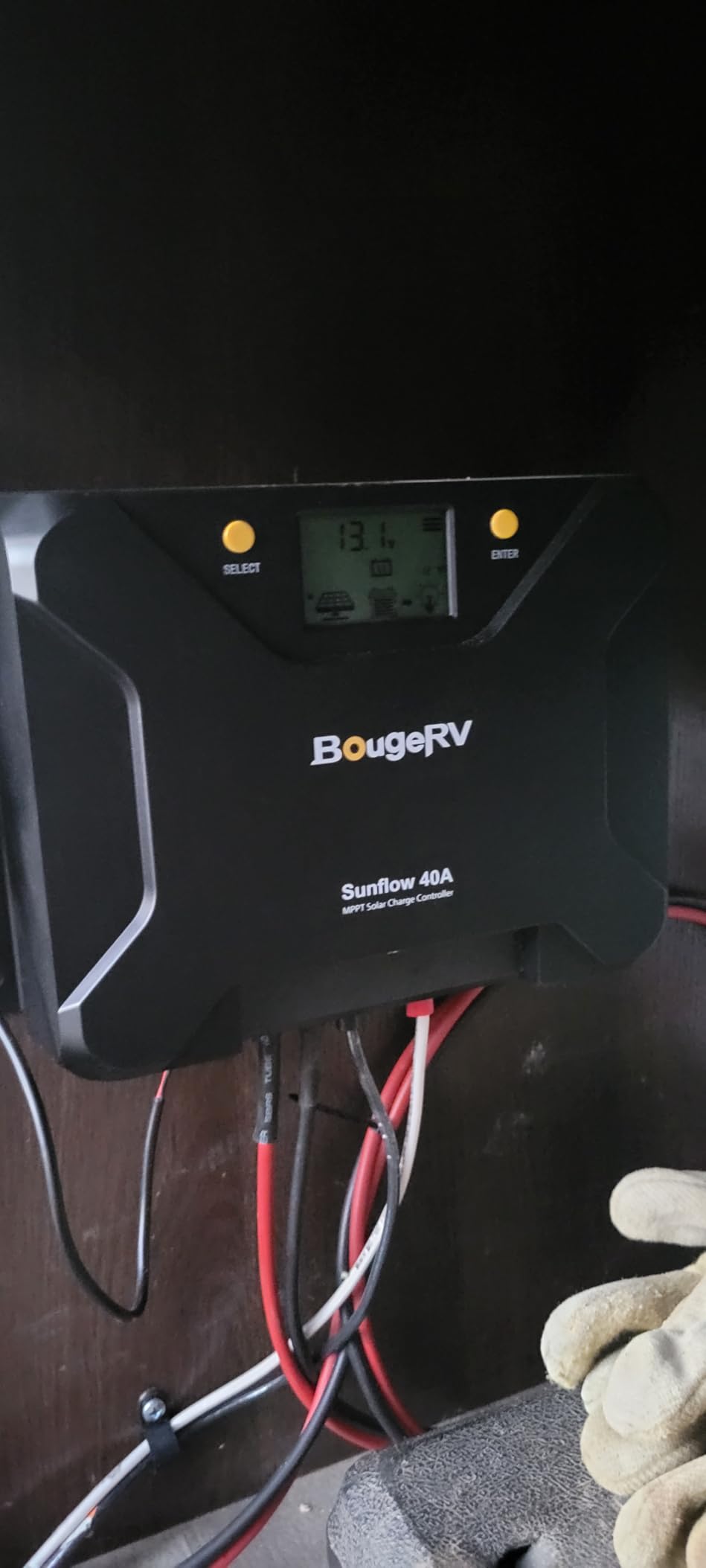

7. BougeRV 40A MPPT – Best for Cold-Climate Lithium Banks

The BougeRV 40A is the one we would trust in a northern install. Its low-temperature charging cut-off engages below 32F, and it can restart a dormant 12V or 24V LiFePO4 pack that tripped from over-discharge, both genuinely useful behaviours in a real winter system.

Charge current is adjustable from 0A to 40A, tracking efficiency reaches 99.5%, and peak conversion hits 99%. Max PV input is 600W at 12V or 1200W at 24V with a 95V maximum PV voltage.

An aluminum heat sink paired with a dual MOS circuit reduces heat and blocks reverse current, and six protections cover over-temperature, open circuit, short circuit, overload, reverse polarity and backward current flow. The backlit LCD offers full-featured, no-load and viewing modes, and the unit is CE and RoHS certified.

Owners running RV and off-grid builds like the large screw terminals, which accept a real screwdriver, plus the supplied spade connectors. One reviewer reports running two of these paired with 440W of solar without incident. Rated load current is 20A and the warranty is 18 months.

Why the cold-weather focus matters

Charging a lithium bank below freezing is the fastest way to damage it. A controller that stops charging when it gets cold is doing you a favour, and this one does that automatically without any configuration. If your site sees real winters, that behaviour is worth more than a slightly higher peak efficiency figure.

Where it disappoints

The app is the problem. Bluetooth range is often only 5 to 10 feet, it requires an internet login so it becomes unreliable far from cell coverage, and data logging history is inconsistent, sometimes showing five minutes and other times two days.

Programming options are not intuitive without prior experience, and the lug insertion slot is narrow enough that owners recommend testing terminal fit before crimping.

8. POWLAND 100A MPPT – Real 100A Output for 48V Banks

The POWLAND 100A is the only controller here we would consider for a whole-home 48V off-grid array. It delivers a genuine 100A maximum charging current with photovoltaic utilization of 99% or better and maximum efficiency of 98.1% or better, across a four-stage algorithm of bulk, boost, float and equalizing.

It auto-identifies 12V, 24V, 36V and 48V systems, and the 150V maximum input voltage lets you series-string a long PV run, cutting current and wire gauge. One owner reports running a 5.2kW off-grid array at 240V through it without issue.

The LCD with four buttons shows live system data and operating status, and the display stays on whatever screen you were last viewing. Battery support covers flooded, AGM, GEL and lithium-ion, with short circuit, open circuit, reverse and overload protection. The manual is unusually good for this category, which matters at 100A where a settings mistake is expensive.

When the extra amps are worth it

They are worth it when your array is genuinely large and your bank is deep. A 48V system with a multi-kilowatt array will not fit the output ceiling of any of the 30A or 40A controllers here. Automatic identification across four system voltages also makes it a sensible single-box answer for someone who may move between a 12V van and a 48V cabin.

Where it disappoints

Reliability is the dividing issue, and we will not gloss over it. Several owners report units beginning to smoke after about a week with brown liquid pooling on the bottom cover plate, and one replacement failed the same way roughly three months later, pointing at capacitor failure rather than a one-off.

Cooling fans run continuously above roughly 30A and are described as loud, filters need manual cleaning every few months, setup is not beginner-friendly, and customer service was initially unresponsive until Amazon was involved. For a 48V install you depend on daily, read this section twice.

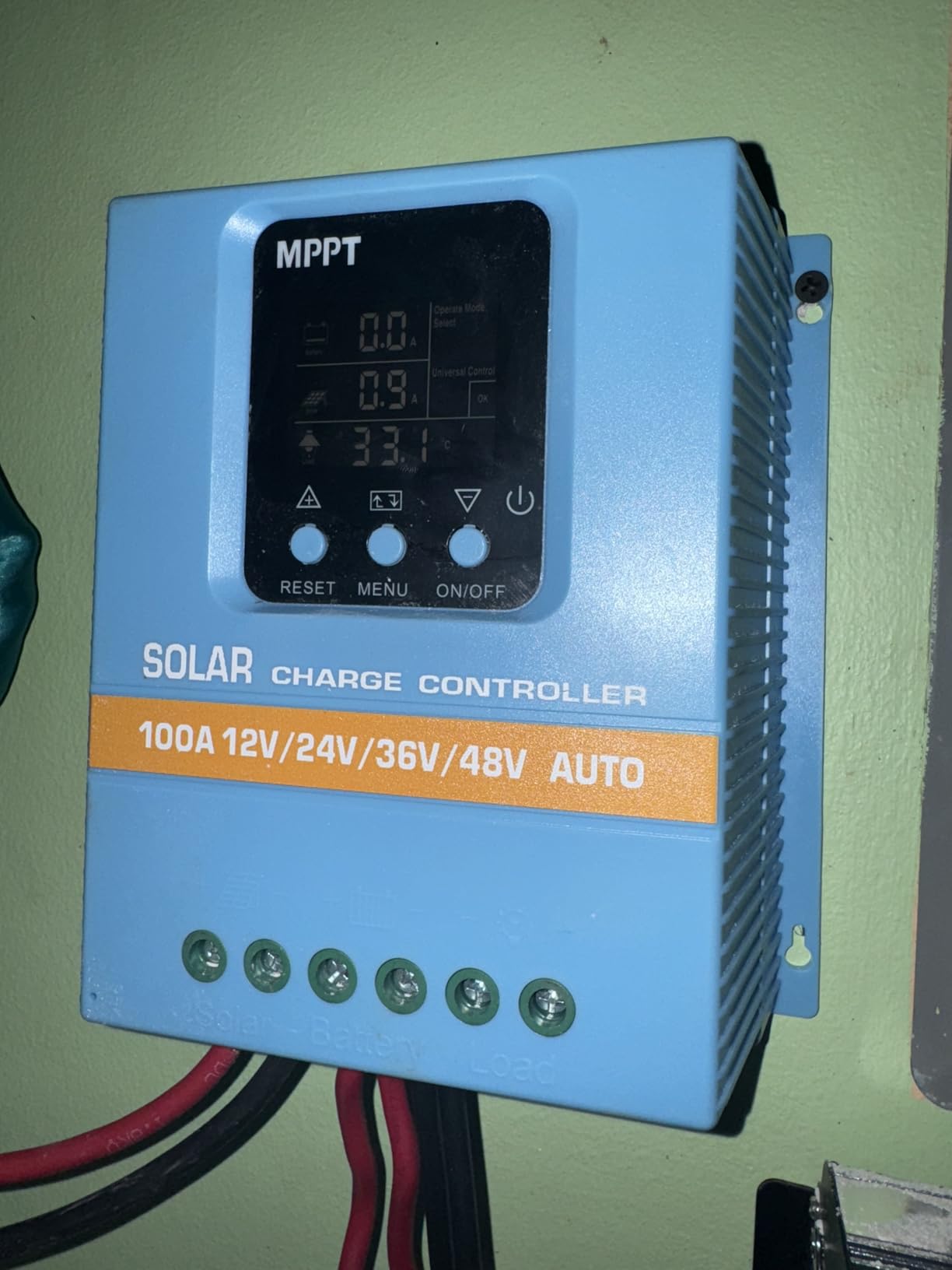

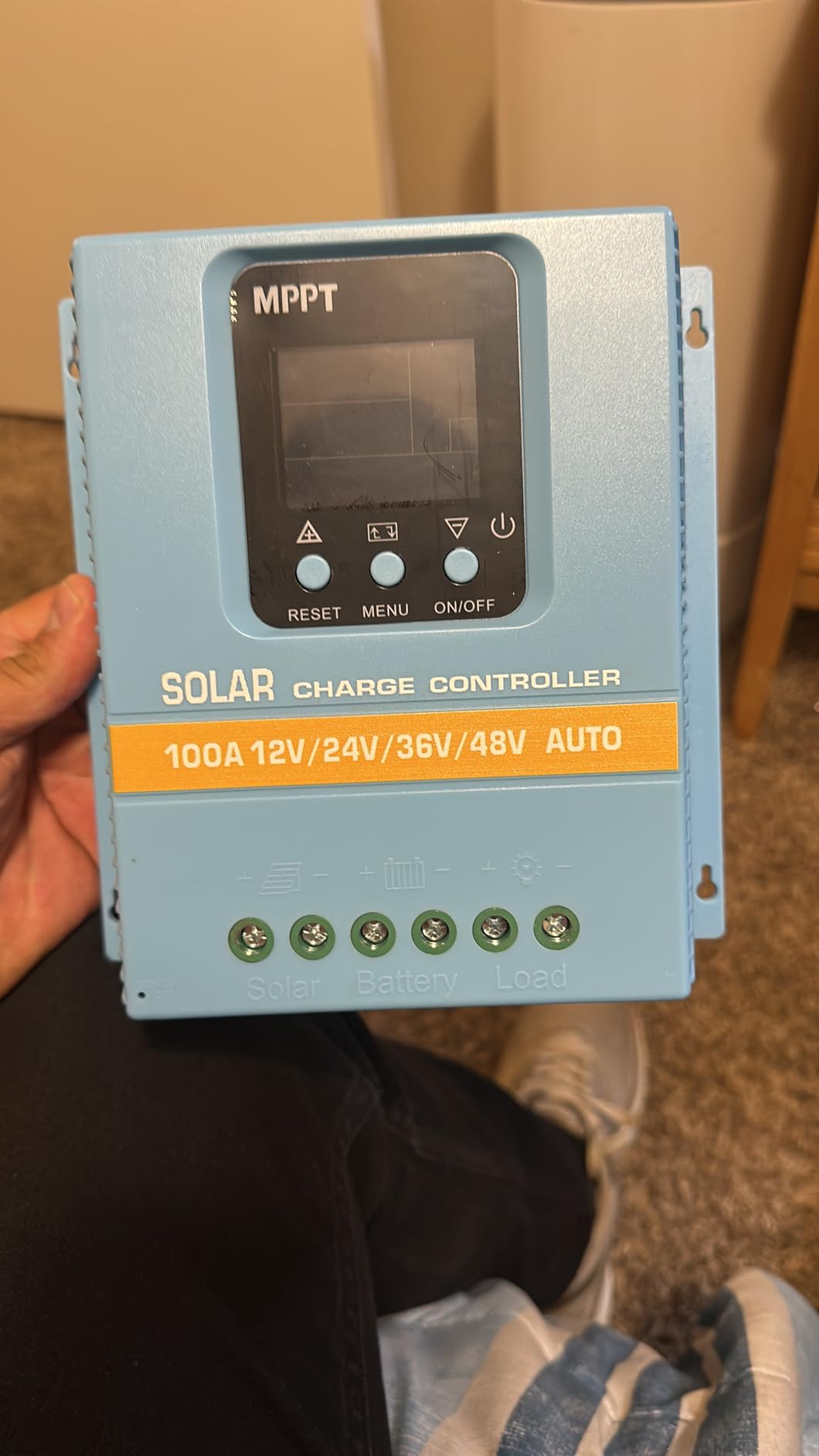

9. ELUSH 100A Controller – Big Amps, Honest Caveats

We include this one because the seller disclosure is unusually honest, and you deserve to know exactly what it is. The listing states plainly that the unit integrates both MPPT and PWM charging and does not deliver full MPPT functionality, which is rare candour in this category.

It auto-recognises 12V, 24V, 36V and 48V systems, adds dual 5V USB charging ports, and carries a multi-function backlit LCD with a clock supporting charging, light control, timed light, universal, manual and timing modes. The upgraded version adds precise time control and a continuous bright screen state without hibernation.

Protection covers battery over-voltage, over-current, power failure, overcharge, deep discharge, reverse connection and overheating, with a factory reset function. Batteries supported are sealed, GEL, flooded and LiFePO4. One tester reports sustained PV output up to 85A on a 12V system after nine months of use.

When it makes sense

It makes sense when panel voltage sits close to battery voltage and you are not chasing maximum harvest, since a small 12V system leaves little for a real tracker to recover anyway. The large wiring ports are the standout: many controllers claiming high amperage come with terminals too small for the cable, and this one does not have that problem.

Where it disappoints

The MPPT label is overstated. Measured efficiency lands around 80 to 85%, in PWM territory rather than the 95 to 98% a genuine MPPT reaches, because the tracking window only aligns with the battery voltage range.

PV voltage and current readings do not match external meters, the display has poor visibility, programming is incomplete including battery type selection, and the heat sink runs near its thermal limit at 80 to 100A. Two of the reviews we analysed rate it one star.

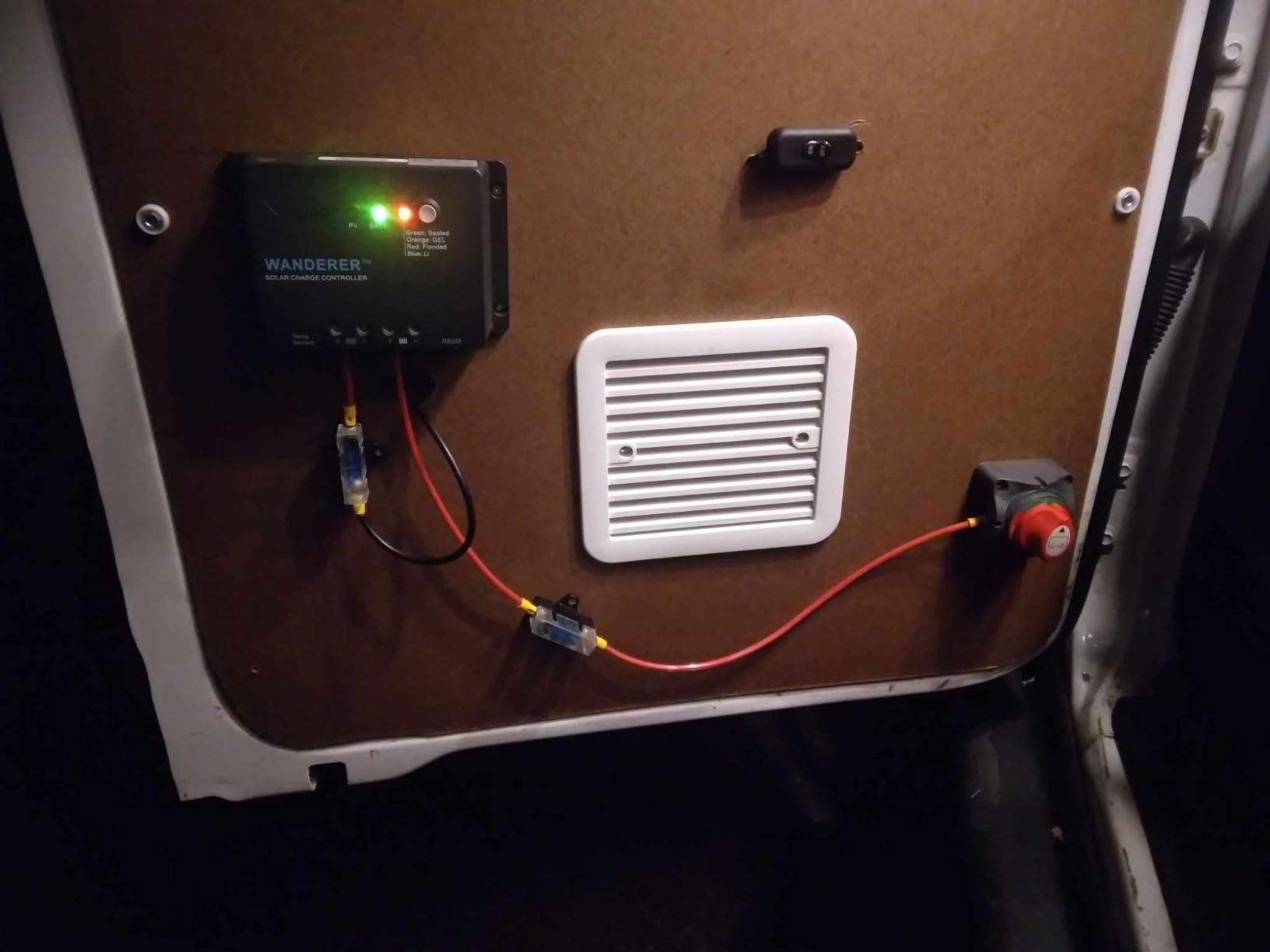

10. Renogy Wanderer Li 30A PWM – The Most-Reviewed Budget PWM Pick

The Wanderer Li is the one we recommend when the array is genuinely small. With 2360 reviews at a 4.4 average it has the second-largest owner sample of anything here, and it weighs under five ounces in a 5.5 by 3.9 by 1.8 inch footprint, which solves a real problem in a crowded RV cabinet.

Charging is four-stage PWM: 30A bulk, a 120-minute boost voltage stabilisation stage, float micro-current maintenance, and automatic equalization. Lead-acid chemistries auto-detect, lithium is set manually, and it works with lithium, AGM, gel and flooded banks.

The IP32 waterproof casing and corrosion-resistant materials are why it keeps appearing in marine and RV installs, and tool-free DIN rail or wall mounting means no bracket hunting. Protection covers reverse polarity, overcharge, overload and short circuit.

The honest limitation is PWM efficiency, in the 75 to 80% range rather than the 95 to 98% an MPPT reaches. LED indicators show charging stage clearly, but there is no LCD for numeric readings.

Where PWM is genuinely the right answer

On a small array where panel voltage barely exceeds battery voltage there is very little excess to harvest. Forum experience matches this, with one 800W off-grid build reporting acceptable PWM losses until the array passed roughly 140W, after which the shortfall became noticeable. Under about 150W of panel on a 12V bank, PWM is hard to argue with.

Where it disappoints

There is a documented failure mode to know about: a Reddit commenter in r/vandwellers flagged Renogy matching PWM controllers to higher-Vmp panels as a real-world problem. This unit has a 25V PV input ceiling, so a 30V-class panel will not work here at all.

Bluetooth monitoring and temperature compensation both require the separately sold BT-1 module, and lithium battery type must be set manually. Verify your panel Voc before buying.

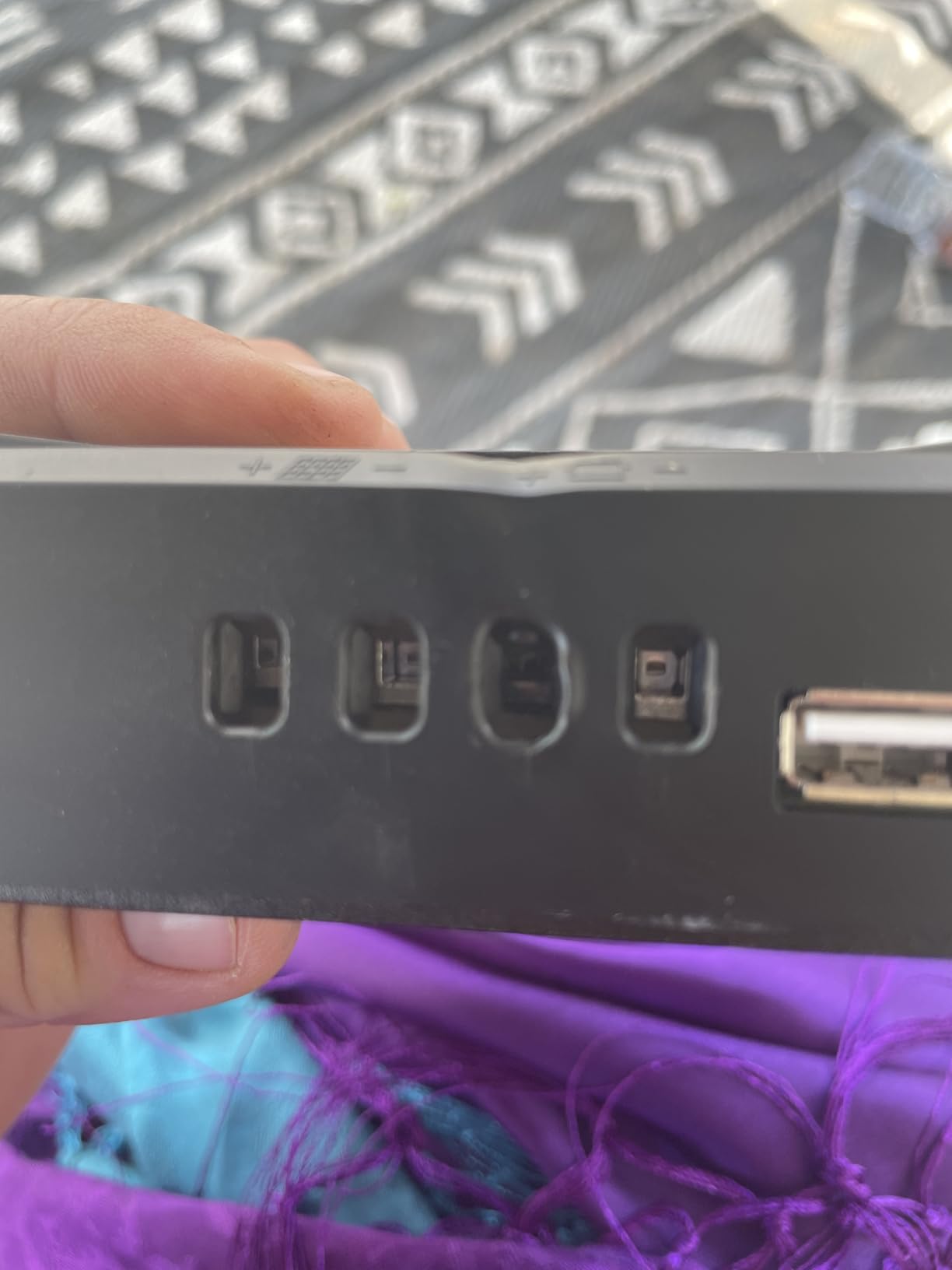

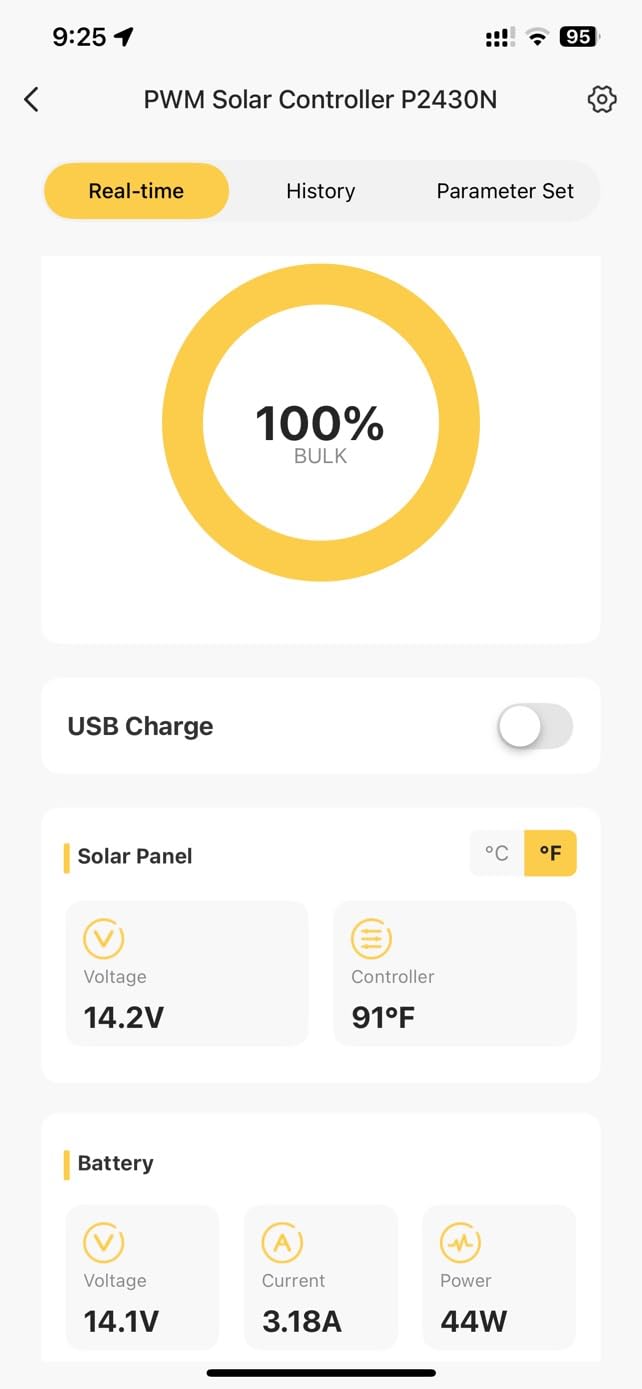

11. BougeRV 30A PWM – A Screen on a Small Budget

The BougeRV P2430N is the budget PWM option for someone who wants a screen. The backlit LCD cycles PV input current and battery voltage every three seconds, and dims to 50% brightness when not operating, a genuinely thoughtful detail for dim installs.

Lithium support is unusually broad for the price, with dedicated on-screen icons for LFP, ternary lithium and LTO chemistries, plus a lithium jumpstart function for overly discharged packs. It also handles sealed, flooded, gel, AGM, SLA and LiFePO4 banks.

Array capacity reaches 450W on a 12V system and 900W on 24V, and the footprint is 5.92 by 3.95 by 1.92 inches. Three pairs of spade terminals are included for clean wiring and the warranty is 18 months. Max PV input voltage is 55V, higher than most budget PWM units allow, but still well short of the 95V to 150V ceilings the MPPT units reach.

Who should choose it

Choose it if you are building a 12V or 24V system in the 300W to 450W range and want numeric voltage and current without spending on MPPT. The jumpstart function is a real bonus for lithium banks that have been sitting unused, and it suits anyone running an LTO bank, which almost nothing else at this price addresses properly.

Where it disappoints

There is no Bluetooth or app connectivity at all, so any monitoring means visiting the controller. And because it is PWM, you give up meaningful harvest on any array where panel voltage runs well above bank voltage.

The 4.1 average is the second lowest here, with a lower five-star share that means a meaningful proportion of one to three star reviews. The display cycling between two values rather than showing both is an irritation owners mention.

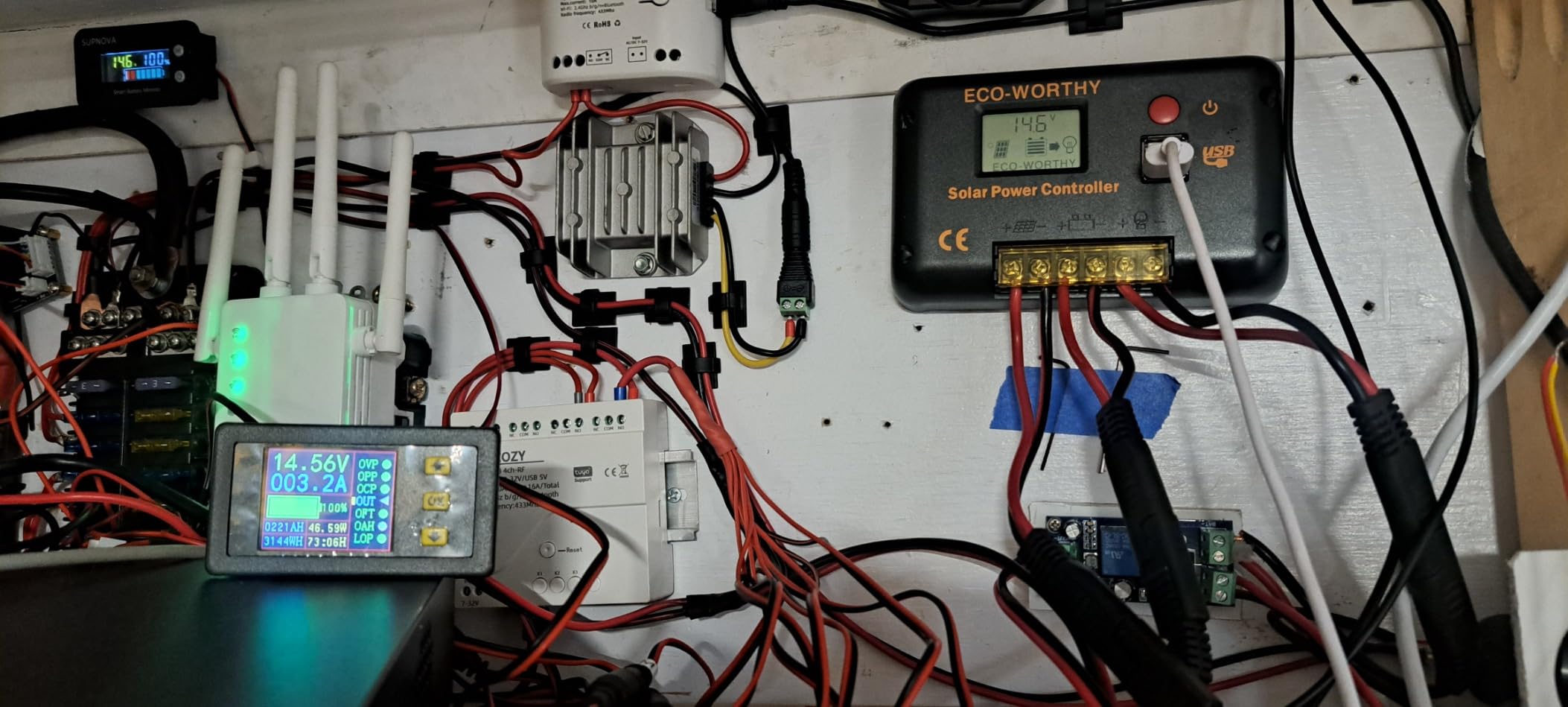

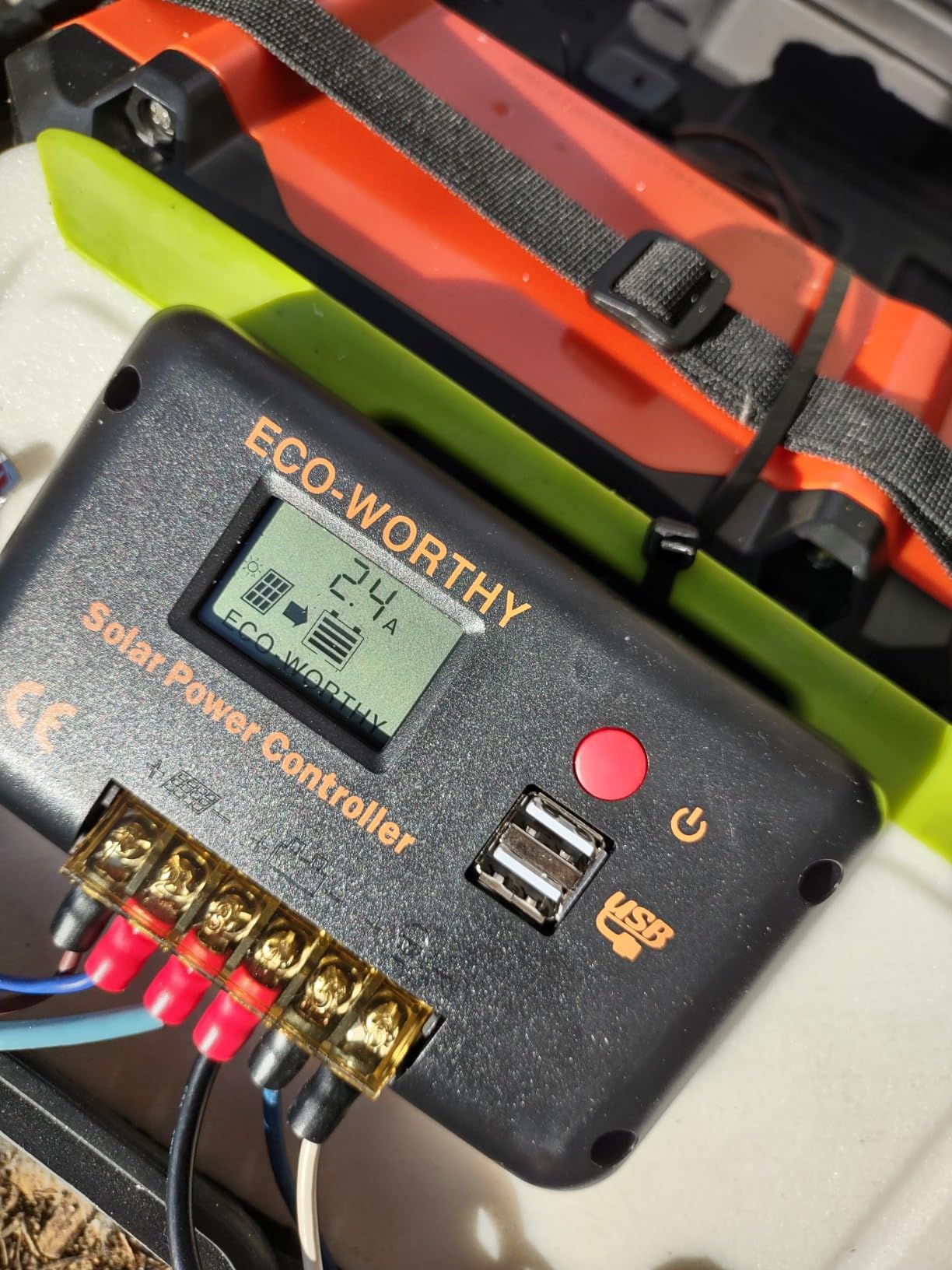

12. ECO-WORTHY 30A PWM – Bluetooth and USB on a Budget

The ECO-WORTHY 30A is the pick when connectivity matters more than efficiency. Its built-in Bluetooth has the longest stated open field range in this lineup at about 98 feet, far more usable than the 5 to 10 feet some competing apps manage in practice.

It handles 12V and 24V systems, offers 10A of discharge current on the load side, and includes dual USB outputs at 5V and 2.5A maximum for charging devices straight off the controller, a genuinely useful feature for a van build.

Measurement accuracy is quoted within a 1% error margin, which is honest and better than most controllers at this level. Charging is three-stage PWM with dual MOSFET reverse current protection that produces low heat, and the LCD has switchable modes for parameter configuration.

Protection covers short circuit, open circuit, reverse and overload, and it works with lead-acid, gel and lithium phosphate banks.

Where it earns its place

If your array is small and you want phone visibility without buying a separate module, this is the cheapest sensible way to get it. The stated 98 foot range means you can check state of charge from the driver’s seat of a parked van, which is the use case it was designed around.

Where it disappoints

The 10A load output is low if you intend to run meaningful loads through the controller rather than straight from the bank, and the 8V cut-off is more aggressive than typical, so it can cut off loads earlier than you expect on a depleted bank.

It also runs warm and has to be mounted on a flat, well-ventilated surface. At a 4.0 average with an 11% one-star share, treat the PWM efficiency ceiling as a real limit rather than a rounding error.

Buying Guide: How to Size and Choose a Solar Charge Controller

How to size a solar charge controller

The formula is simple: divide your array wattage by your system voltage to get required charge current, then add about 25% headroom and round up to the next available size. A 400W panel on a 12V system is 33.3 amps, so with 1.25x headroom you need about 42 amps, which means a 40A unit is marginal and a 50A or larger controller is the correct answer.

For a 1000W array on 24V you are at 41.7 amps, and 1.25x puts you near 52 amps, so a 60A to 80A controller is the right band. A 5000W array on 48V needs about 104 amps before headroom, which is why only the 100A controllers in this roundup apply to that scale.

Second rule, and the one that voids warranties: check the maximum PV input voltage. Series panels add Voc together, and cold weather raises Voc further. A controller with a 55V or 100V ceiling may not accept the string you have, or the same string on a freezing morning.

PWM vs MPPT: which one you actually need

PWM controllers run in the 75 to 80% efficiency range because they simply throttle the panel output down to match battery voltage, wasting the excess. MPPT controllers run at 95 to 98% because they actively track the array’s maximum power point and convert that excess voltage into usable charging current.

The MPPT gain grows in exactly the conditions off-grid users face most: cold weather, low light, and partial shade. Choose PWM when your panel voltage sits close to bank voltage, when the array is roughly 150W or less on a 12V system, or when the budget genuinely does not stretch. Choose MPPT for everything else, and treat any listing that claims MPPT without a real tracking algorithm with suspicion.

LiFePO4 vs lead-acid compatibility

Lithium changed what buyers should look for. Lead-acid uses a four-stage bulk, absorption, float, equalize profile; LiFePO4 generally wants a two-stage bulk and absorption profile with a lower or configurable absorption voltage, and holding it at lead-acid voltages shortens its life.

Look for a dedicated lithium mode, a user-defined battery type, or a customisable absorption voltage. Three of the controllers here add low-temperature charging cut-off below 32F, which matters more than most buyers expect if your winters are real.

48V systems, parallel operation, and monitoring

If you are working at 48V, check that the controller actually supports it rather than inferring it from a 24V label. The HQST, POWLAND and ELUSH controllers auto-identify across 12V, 24V, 36V and 48V, while most of the rest stop at 24V.

Expansion works differently too. The HQST supports up to nine controllers in parallel on one bank with the right cable, and Renogy’s Rover works reliably alongside a second identical unit. Mixing manufacturers in parallel is the practice forum builders warn against.

On monitoring, Bluetooth is convenient but short-ranged, and several apps here require an internet login that fails without cell coverage. RS485 with Modbus, as on the EPEVER Tracer, accepts proper remote meters, WiFi adapters and data loggers, which is the more dependable route for a fixed installation.

Installation essentials that decide whether it works

Mount the remote temperature sensor on the battery bank, not on the controller, and run the included cable to it. Most of the controllers here include one, and temperature compensation is what protects a bank through a cold season.

Fuse the battery and PV runs close to the battery, torque terminals to the maker’s figure, and never rely on the controller’s reverse-polarity protection instead of checking your wiring twice. Watch ventilation on PWM controllers that run warm, and give vented enclosures clearance on all sides.

If you are still deciding on hardware for the rest of the system, our picks for the best solar generators cover a related corner of the market, and our guide to the best solar watches for men and the best solar watches under $500 cover the far smaller panel scale where no controller is needed at all.

Frequently Asked Questions

Final Verdict: Which Solar Charge Controller to Buy in 2026

For most off-grid builds, the best solar charge controllers for off grid systems come down to three recommendations. The Renogy Rover 40A MPPT is our overall choice, with 12V and 24V auto-detection, 98% conversion efficiency, a working -40F to 149F range, and the deepest owner history in this group at 4046 reviews.

Buy the HQST 80A MPPT if your array is large or will grow, since 80 amps, a 150V PV ceiling, 48V support, and built-in Bluetooth cover the widest range of installations. Buy the EPEVER Tracer 3210AN 30A if field longevity and low maintenance matter more than wireless monitoring, which you can add later with an MT50 meter or a WiFi adapter.

For small arrays under roughly 150W on 12V, the Renogy Wanderer Li 30A PWM is honest, compact and IP32 rated, and the energy a real MPPT would recover on an array that small is not worth chasing. Whatever you choose, check the maximum PV input voltage against your string before anything else.
